Cracked Garage Floor: Settlement or Just Stress?
Garage floors take more weight and more weather swings than almost any slab in the house. A crack can be a harmless shrinkage line, or it can be the slab settling into soft soil underneath.
Let's take the first step toward a healthy home.
A local specialist will inspect your foundation, walk you through the findings, and send a clear estimate, no cost, no pressure.
Cracked Garage Floor: diagnosed and explained.
A garage floor is a concrete slab poured on soil, and it cracks for the same reasons any slab does. Concrete resists about 3,000 to 4,000 psi of compression but only 300 to 400 psi of tension, so when the ground below moves or the slab carries more load than its support can handle, it fractures. Garage slabs face extra stress that interior floors do not. They sit closer to the frost line, take the full weight of vehicles, and often cover backfill near the foundation that was never compacted as well as undisturbed ground. In Nebraska, Iowa, Kansas, and Missouri, expansive clay and loess shift with moisture, and 50 to 70 freeze-thaw cycles a year heave and drop the slab. The reason to look closely is that a settling garage floor rarely stops on its own. A crack with one side dropping, a slab pulling away from the foundation wall, or a section sinking near the door points to lost support below. Catching it early usually means foam injection can lift and stabilize the slab. Waiting often lets the gap widen until the only option is full replacement.
Watch for these warning signs alongside a cracked garage floor.
- 01
A lip or step where the crack edges meet
A height difference across the crack means the two sections have settled unevenly.
- 02
The slab pulling away from the foundation wall
A widening gap at the wall shows the garage floor is dropping faster than the foundation.
- 03
A dip or low spot near the garage door
Sinking at the door often traces poorly compacted fill below the slab.
- 04
A hollow sound when tapped
A drum-like tone signals a void where soil has pulled away from the slab.
- 05
Water running toward the back wall instead of the door
A reversed slope means the slab has tilted from settlement.
- 06
Cracks at the driveway-to-garage joint
Separation at that joint shows the apron and slab are moving at different rates.

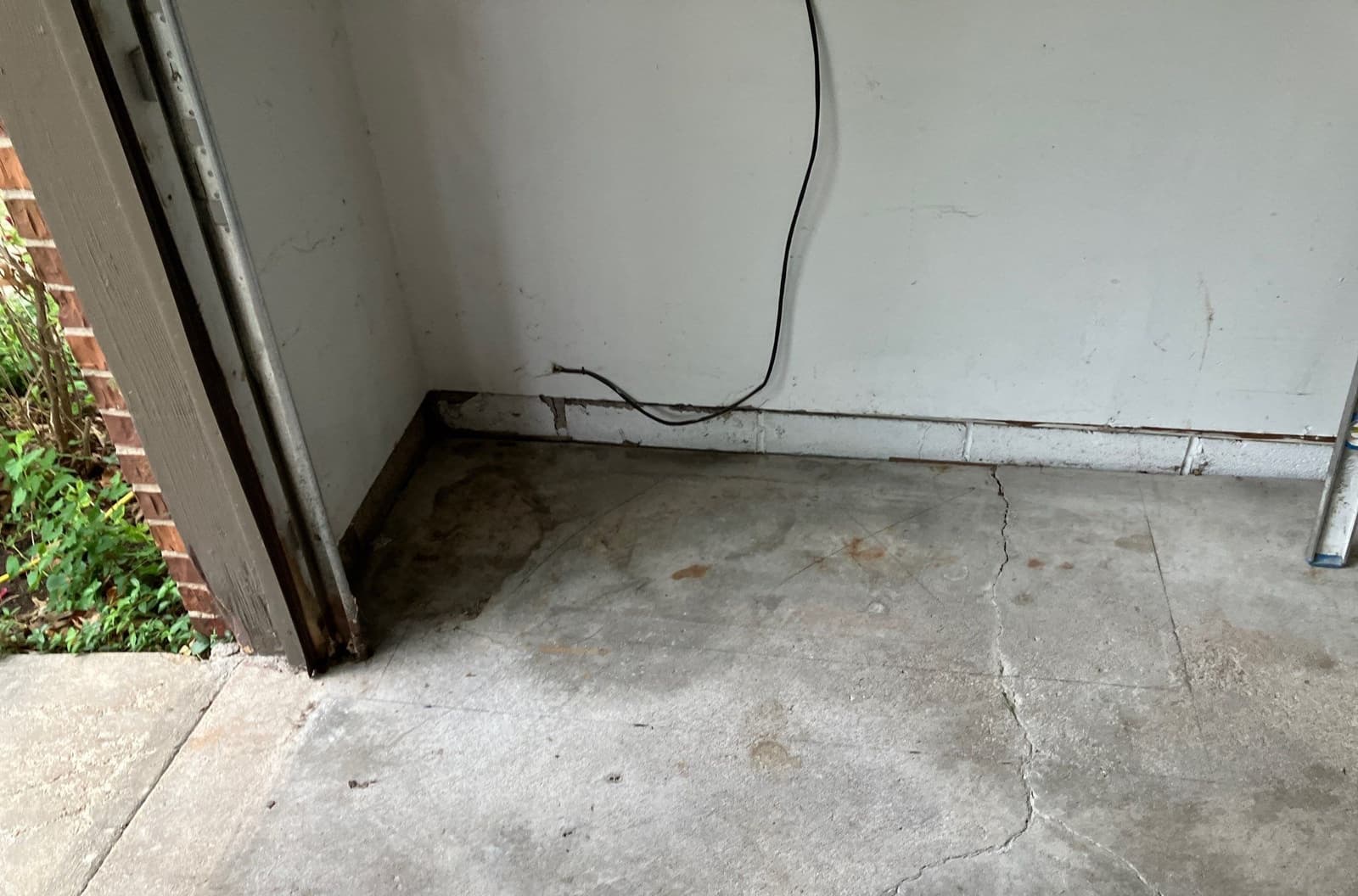

What causes cracked garage floor in Midwest homes.
- 01
Settlement of Backfill Soil
Garage slabs often sit over soil that was disturbed during construction and never fully compacted. As that loose fill settles, the slab loses support and cracks where it bridges the gap. The drop is usually worst near the foundation wall or the garage door.
- 02
Load Stress from Vehicles
Cars, trucks, and stored equipment concentrate heavy weight on the slab. If the concrete is thin or the soil under it is soft, that load bends the slab past its tension limit and opens cracks, often near the center or the door opening.
- 03
Freeze-Thaw Movement
Garage floors near the frost line take the brunt of 50 to 70 freeze-thaw cycles a year, with frost reaching 36 to 42 inches deep. Water in the soil freezes and lifts the slab, then thaws and lets it drop. The repeated motion fractures the concrete.
- 04
Curing Shrinkage and Missing Joints
Like any slab, a garage floor shrinks as it cures and relieves that tension by cracking, especially when control joints are spaced too far apart. These cracks are usually thin and stable rather than a sign of settlement.
How cracked garage floor looks after a permanent fix.
A real Epp Foundation Repair project. The visible symptom resolves once the underlying cause is corrected.
How concrete leveling specialists actually fix cracked garage floor.
Solving cracked garage floor means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Nebraska, Iowa, Kansas, and Missouri homes.
Engineered concrete leveling solutions for this problem.
Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.
Concrete Grinding
Epp Foundation Repair has ground tripping edges off sidewalks, driveways, and garage entries across Nebraska, Iowa, Kansas, and Missouri since 1994. A fast, low-cost fix when the differential is small and the slab underneath is stable.
Concrete Joint & Crack Sealing
Epp Foundation Repair has sealed concrete expansion joints and stable cracks with self-leveling polyurethane across Nebraska, Iowa, Kansas, and Missouri since 1994. Flexible material that handles 50+ freeze-thaw cycles a winter without splitting.
Concrete Patching
Epp Foundation Repair has patched localized concrete damage. Salt-spalled stoops, broken handrail anchors, pitted garage entries. Across Nebraska, Iowa, Kansas, and Missouri since 1994, with the right material matched to the substrate every time.
Concrete Pouring
Some slabs cannot be saved by leveling. Epp Foundation Repair pours new flatwork on properly prepared ground across Nebraska, Iowa, Kansas, and Missouri. We tell you honestly when a fresh pour is the smarter spend.
Concrete Void Filling
Voids under a concrete slab leave it with nothing to rest on. Epp Foundation Repair has filled those pockets with structural foam across Nebraska, Iowa, Kansas, and Missouri since 1994. No demolition, no waiting for a new pour to cure.
Mudjacking
Mudjacking is the traditional way to lift a sunken concrete slab: a cement based slurry pumped underneath through drilled holes. Epp Foundation Repair does not perform mudjacking. Here is how the method works, and why every lifting job Epp completes across Nebraska, Iowa, Kansas, and Missouri uses PolyLift polyurethane foam injection instead.
Why settled concrete in Nebraska and Iowa returns without a soil fix
Most settled driveways, sidewalks, and patios across our region sit over loess fill that consolidated after a wet spring or a long-running downspout. Lifting the slab without addressing the soil cause yields a 12 to 36 month rebound. Regional repair treats the soil column under the slab, not just the surface elevation.
Loess soils and the crack patterns they produce
Most of eastern Nebraska and western Iowa sits on wind-deposited loess, a fine, silty soil 10 to 200+ feet deep. Loess holds its structure when dry but loses cohesion rapidly when saturated. After a wet spring, saturated loess expands against foundation walls. After a dry Nebraska summer, it contracts, pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently on the Lincoln, Omaha, Council Bluffs corridor.
The Marshall and Sharpsburg loess series, dominant across the eastern Nebraska service area, are particularly prone to this cyclical volume change. Homes built in the 1960s, 1980s on uncompacted loess backfill show the highest incidence of progressive settlement cracking in our inspection data.
Frost depth, freeze-thaw cycles, and horizontal cracking
Eastern Nebraska's 36, 42" frost penetration depth means the soil below grade freezes and thaws 60, 80 times per year. Each cycle applies lateral pressure to basement walls. A wall that holds through ten cycles can fail in the eleventh if drainage has worsened, backfill has settled, or the wall was already at capacity. Horizontal cracks near the soil grade line are almost always a freeze-thaw story in this region.
In eastern Kansas, expansive clay pockets near the surface introduce a different failure mode. Consistent volume change regardless of frost depth. Horizontal cracking in Kansas foundations typically traces to clay expansion; the same pattern in Nebraska more often indicates frost-driven hydrostatic pressure.
"The mistake homeowners make is treating settled concrete like a concrete problem. It's not. It's a soil problem the concrete is reporting on. Lift the slab without addressing what's under it and you'll be back in five years."
Care and expertise from a team that's been doing this since 1994.
Epp Foundation Repair is locally owned and operated, with crews dedicated exclusively to foundation, basement, and concrete work across the Midwest.
Foundation repair, waterproofing, and concrete leveling are our entire focus, not a sideline.
Three decades of experience with Midwest soils, basements, and weather conditions.
Recognized in 2011 and 2016 for ethical business practices and customer transparency.
Every repair comes with a written Epp warranty, from 1 year to the lifetime of the structure depending on the product.
