Stop Bowing Basement Walls With Engineered Carbon Fiber Straps

The variation depends on strap count (driven by soil load and existing deflection), wall accessibility, and whether existing cracks need epoxy injection before strap installation. A Customized Repair Estimate after on-site inspection reflects your scope. Dave Epp has never priced a wall sight-unseen and won't start.

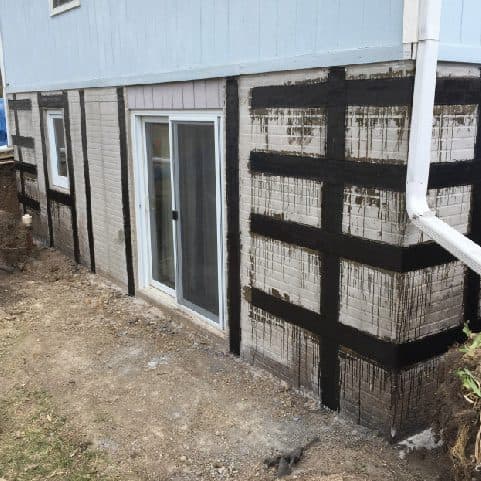

Properly installed carbon fiber stops the inward movement at the strap location. The composite of carbon fabric plus structural epoxy, fully anchored top and bottom, carries roughly 150,000 psi in tension. Far more than the soil pressure that bowed the wall in the first place. Epp Foundation Repair documents baseline wall deflection at install and re-measures at 30 and 90 days; in over two decades of installations across Nebraska, Iowa, Kansas, and Missouri, properly diagnosed walls with adequate strap count and verified anchorage have not shown additional movement. Movement after a proper install almost always traces back to a footing or drainage problem that should have been addressed first.

Epp Foundation Repair backs every corner-to-corner carbon fiber installation, on walls bowed up to 3 inches, with a lifetime warranty against further inward movement. If the system fails to restrain the wall, Epp returns to repair or replace at no charge. The warranty transfers to the next homeowner if the property sells, which matters when a buyer's inspector flags the basement wall.

Bowing walls do not stabilize on their own. The soil pressure that caused the inward movement keeps pushing, and once the wall has cracked horizontally it has lost most of its remaining tensile capacity. Every additional freeze-thaw cycle or saturation event drives the deflection further. Epp Foundation Repair has documented walls move from half-inch deflection to over two inches across two spring seasons. Past two inches, carbon fiber is no longer the appropriate fix and wall replacement becomes the conversation, which typically runs five to ten times the cost of timely strap installation.

Carbon fiber works on both poured concrete and concrete block (CMU) walls, but the diagnostic threshold is different. On poured walls, Epp Foundation Repair will install straps on walls bowed up to about two inches with intact concrete. On block walls, the same two-inch threshold applies, but the crew first verifies the mortar joints are intact and the wall hasn't sheared at the cove joint. Block walls with stair-step cracking through multiple courses and visible joint failure may need a different approach. Wall anchors or partial replacement, and Epp will tell you that before quoting straps.

No. Carbon fiber is a structural repair, not a waterproofing system. If your bowing wall is also leaking, the leak still needs to be addressed. Typically with interior drain tile, an exterior membrane, or epoxy injection on the specific leaking crack. Epp Foundation Repair often pairs carbon fiber with drainage work on the same project because expansive clay swells against the wall worst when it is saturated, so solving the water problem reduces the load that bowed the wall in the first place.
