Recurring Drywall Cracks Traced to the Foundation, Not the Paint
Epp Foundation Repair has diagnosed drywall cracks across Nebraska, Iowa, Kansas, and Missouri since 1994. A crack that keeps coming back after the third patch is not a drywall problem; it is a foundation problem the wall is reporting.
Let's take the first step toward a healthy home.
A local specialist will inspect your foundation, walk you through the findings, and send a clear estimate, no cost, no pressure.
Drywall Cracks Diagnosed at the Foundation, Not the Patch: diagnosed and explained.
Epp Foundation Repair distinguishes cosmetic drywall cracking from structural movement using three field tests, not guesswork. Cracks at the upper corners of doors and windows, cracks that run on a 45-degree diagonal across a ceiling, and cracks that reopen within 12 months of being patched are foundation signals most of the time in Dave Epp's 30-plus years of field notes. Since 1994, the crew has worked in homes across Lincoln, Omaha, Grand Island, Norfolk, and St. Joseph, and the diagnostic pattern is consistent: if the door sticks and the drywall cracks on the same wall, the foundation is moving. If only the drywall cracks and nothing else has shifted, seasonal humidity and truss uplift account for most of it.
Drywall Crack Patterns That Point to Foundation Movement
- 01

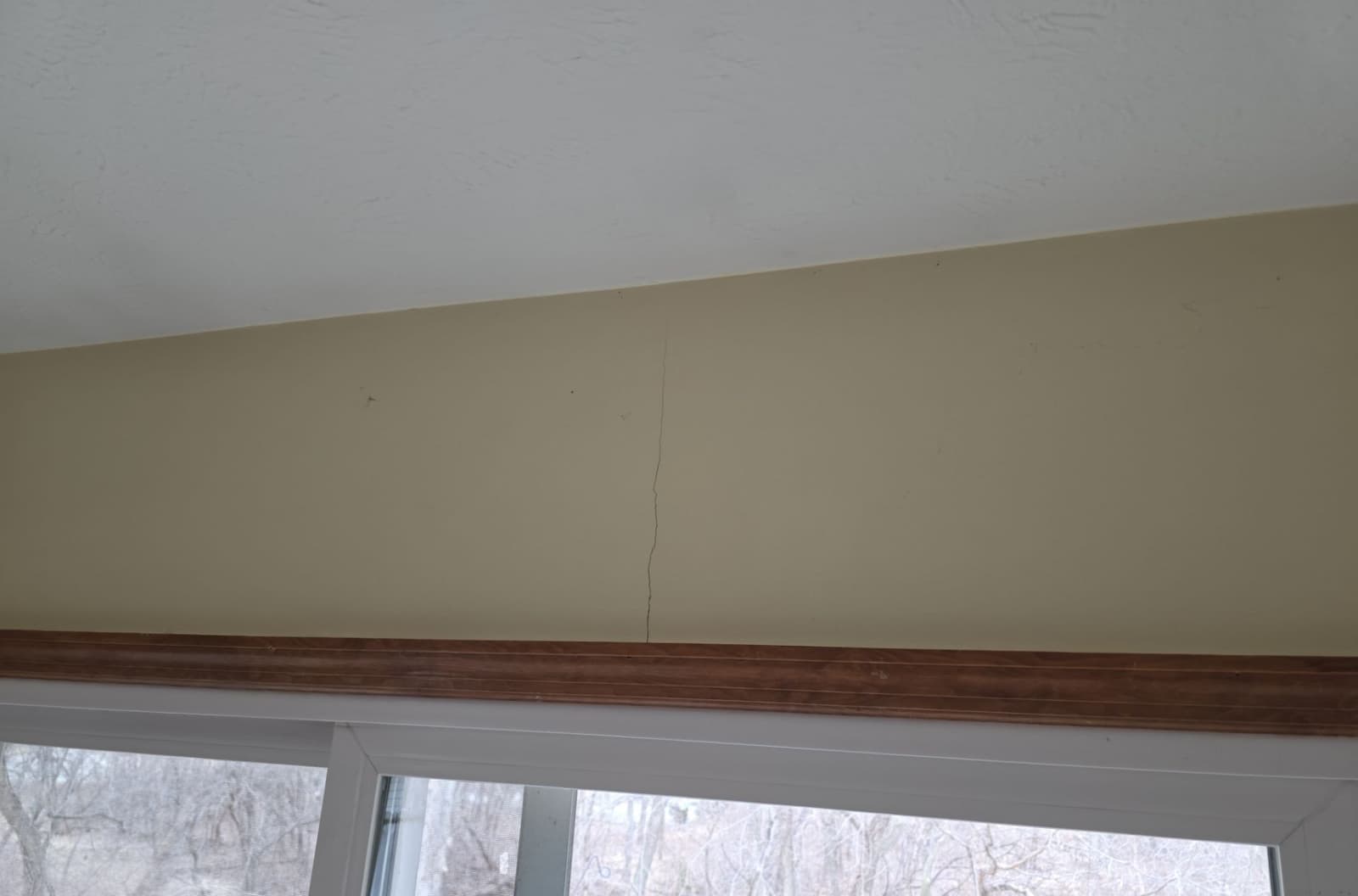

Cracks at the corners of doors and windows that recur after patching
A diagonal crack at the upper corner of a doorway or window that reopens within 12 months of a clean patch is a strong signal of active foundation movement. The drywall corner has the least shear capacity in the wall, so it tears first.
- 02
Long horizontal or diagonal crack across a ceiling
A ceiling crack longer than four feet that runs roughly parallel to the joists indicates the framing has deflected. On slab-on-grade homes in Kansas and Missouri, this is usually clay heave lifting the slab and the interior walls with it.
- 03
Cracks paired with sticking doors or sloping floors
Any drywall crack that appears in the same area as a sticking door, a window that no longer latches, or a floor that has measurably sloped (use a 4-foot level. Anything more than 3/8 inch of slope is significant) is a foundation signal until proven otherwise.
- 04
Cracks wider at the top than at the bottom
Vertical or near-vertical cracks that taper open at the top indicate the wall is rotating outward at the top, which usually means the footing on that side is settling. Cracks that taper open at the bottom indicate heave from below.
What causes drywall cracks diagnosed at the foundation, not the patch in Midwest homes.
- 01

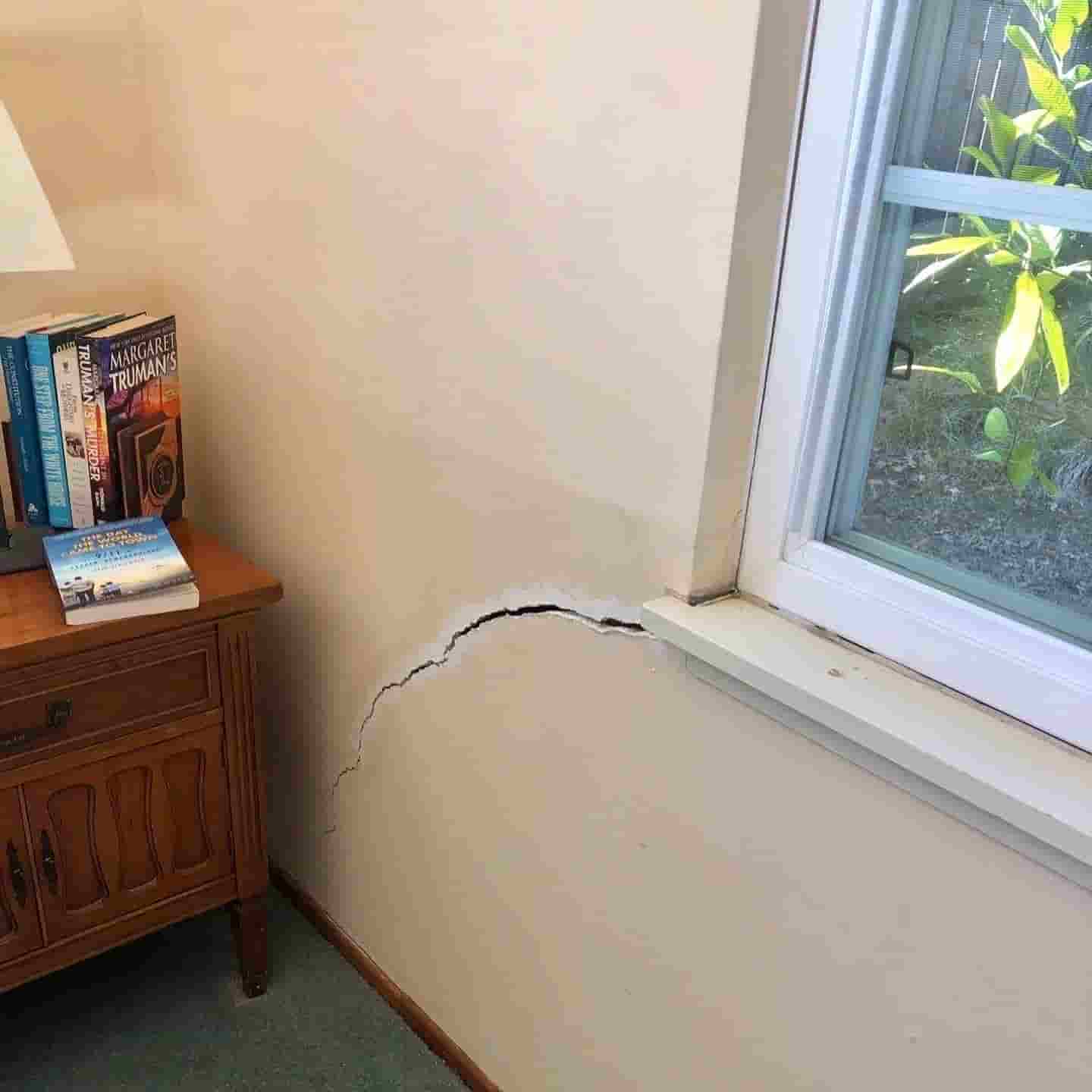

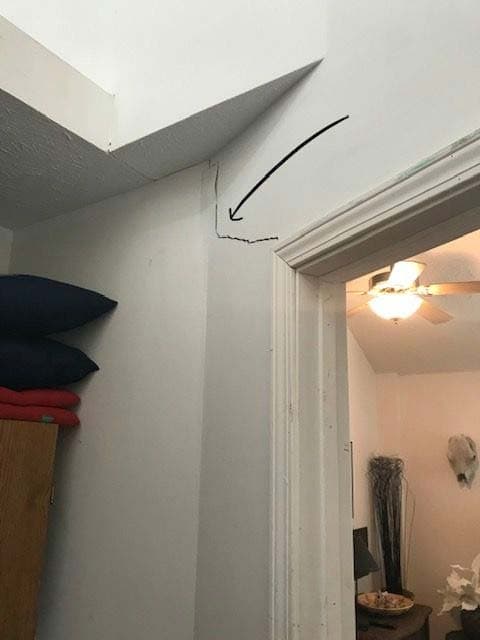

Differential foundation settlement racking the wall frame
When a footing drops 1/4 inch or more in one area, the rigid wood-framed wall above it racks into a parallelogram shape. Drywall has almost no shear strength, so it cracks at its weakest point: the corners of door and window openings, where the framing is interrupted. Across eastern Nebraska and western Iowa, loess soil that collapses when wetted is the most common driver.
- 02
Expansive clay heave at slab-on-grade homes
Across Kansas and Missouri, slab-on-grade homes built on prairie clay (plasticity index frequently above 30) experience seasonal slab heave when the clay swells under the center of the slab during wet periods. The slab edges, which are anchored by the perimeter foundation, do not move; the slab center lifts. Interior walls built on the slab move with it and pull the drywall away from the perimeter walls that did not move.
- 03
Seasonal humidity cycling on framed walls
Interior relative humidity across the Midwest swings 20 to 30 percentage points between winter heating (often 15 to 25% RH) and summer air conditioning (45 to 55% RH). Wood framing gains and loses moisture with the swing, and drywall taped joints. The weakest seam in any wall. Open and close roughly 0.010 to 0.030 inch each season. The resulting hairline cracks at taped seams are not foundation movement.
- 04
Truss uplift in newer construction (post-1985)
Wood roof trusses with lower chords held under 15% moisture during installation can rise 1/2 to 1 inch off the interior walls during winter heating, then return in summer. Drywall taped to both the truss and the wall top plate tears along the wall-ceiling joint each winter and re-closes each summer. This is cosmetic, not structural, and patching with conventional tape will simply re-crack.
- 05
Foundation wall bowing transferring load to interior walls
Concrete or block foundation walls that bow inward more than 1/2 inch from vertical, typically from hydrostatic pressure on saturated clay backfill, can transfer load up through the framing in unexpected ways. Bearing walls that suddenly start to crack at the upper plate, where they meet the ceiling, often indicate the foundation wall behind them has rotated and the first-floor framing is redistributing load. Carbon fiber straps stabilize the wall and stop the load transfer.
How foundation repair specialists actually fix drywall cracks diagnosed at the foundation, not the patch.
Solving drywall cracks diagnosed at the foundation, not the patch means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Nebraska, Iowa, Kansas, and Missouri homes.
Engineered foundation repair solutions for this problem.
Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.
Helical Piers
When a foundation has settled into soft or eroding soil, surface-level repairs treat the symptom. Helical piers transfer the structure's load to deep bearing soil, stopping settlement permanently, often restoring lost elevation.
Push Piers
Epp Foundation Repair has installed resistance push piers under settling Nebraska, Iowa, Kansas, and Missouri foundations since 1994. Driven to refusal under the structure's own weight, warrantied for life on the pier itself.
Foundation Underpinning
Epp Foundation Repair has driven engineered piers through Nebraska loess and Kansas clay since 1994. Helical, push, and slab piers, matched to the soil and the structure.
Carbon Fiber Reinforcement
Epp Foundation Repair has reinforced bowed walls across Nebraska, Iowa, Kansas, and Missouri since 1994. No interior steel, no excavation, no lost basement space.
Deep Foundation Systems
Epp Foundation Repair has stabilized settling structures across Nebraska, Iowa, Kansas, and Missouri since 1994 by carrying the load past weak surface soil to firm ground below. Stop the settlement, then attempt to recover what you can.
Epoxy Crack Injection
Epp Foundation Repair has injected foundation cracks across Nebraska, Iowa, Kansas, and Missouri since 1994, and uses sequential polyurethane plus epoxy when one alone won't hold.
Why foundation movement in Nebraska and Iowa needs a regional diagnosis
Loess soils across eastern Nebraska and western Iowa lose strength when wet. Expansive clay across northeast Kansas and northwest Missouri swells and shrinks with the seasons. Foundation movement here behaves differently than in states with stable bearing soil, which is why our diagnosis starts with the soil under the home, not just the crack on the wall.
Loess soils and the crack patterns they produce
Most of eastern Nebraska and western Iowa sits on wind-deposited loess, a fine, silty soil 10 to 200+ feet deep. Loess holds its structure when dry but loses cohesion rapidly when saturated. After a wet spring, saturated loess expands against foundation walls. After a dry Nebraska summer, it contracts, pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently on the Lincoln, Omaha, Council Bluffs corridor.
The Marshall and Sharpsburg loess series, dominant across the eastern Nebraska service area, are particularly prone to this cyclical volume change. Homes built in the 1960s, 1980s on uncompacted loess backfill show the highest incidence of progressive settlement cracking in our inspection data.
Frost depth, freeze-thaw cycles, and horizontal cracking
Eastern Nebraska's 36, 42" frost penetration depth means the soil below grade freezes and thaws 60, 80 times per year. Each cycle applies lateral pressure to basement walls. A wall that holds through ten cycles can fail in the eleventh if drainage has worsened, backfill has settled, or the wall was already at capacity. Horizontal cracks near the soil grade line are almost always a freeze-thaw story in this region.
In eastern Kansas, expansive clay pockets near the surface introduce a different failure mode. Consistent volume change regardless of frost depth. Horizontal cracking in Kansas foundations typically traces to clay expansion; the same pattern in Nebraska more often indicates frost-driven hydrostatic pressure.
"If a doorway crack keeps coming back after the second patch, the drywall isn't the problem. The wall is just reporting what the foundation is doing. I have watched homeowners pay a drywaller three times for the same corner before someone finally measured the floor."
Care and expertise from a team that's been doing this since 1994.
Epp Foundation Repair is locally owned and operated, with crews dedicated exclusively to foundation, basement, and concrete work across the Midwest.
Foundation repair, waterproofing, and concrete leveling are our entire focus, not a sideline.
Three decades of experience with Midwest soils, basements, and weather conditions.
Recognized in 2011 and 2016 for ethical business practices and customer transparency.
Every repair comes with a written Epp warranty, from 1 year to the lifetime of the structure depending on the product.
