Stair-Step Brick Cracks Diagnosed and Foundation Movement Stopped
Epp Foundation Repair has read brick veneer crack patterns across Nebraska, Iowa, Kansas, and Missouri since 1994. Most stair-step cracks are not a brick problem; they are a foundation problem the brick is reporting.
Let's take the first step toward a healthy home.
A local specialist will inspect your foundation, walk you through the findings, and send a clear estimate, no cost, no pressure.
Cracked Brick Veneer Diagnosed and Stabilized: diagnosed and explained.
Epp Foundation Repair treats brick cracks as diagnostic evidence, not the disease. Stair-step cracks climbing the mortar joints, vertical splits running straight through brick faces, horizontal cracks at the base course, and diagonal cracks fanning from window and door corners each point to a different underlying foundation movement. Since 1994, Dave Epp and his crew have walked homes across Lincoln, Omaha, Grand Island, Norfolk, St. Joseph, and the surrounding counties; in his field notes, most stair-step brick cracks trace back to differential settlement on loess soil or a failed lintel, not freeze damage to the brick itself.
Types of Ceiling Cracks
Related to what you are reading. Our team covers the same ground on camera.

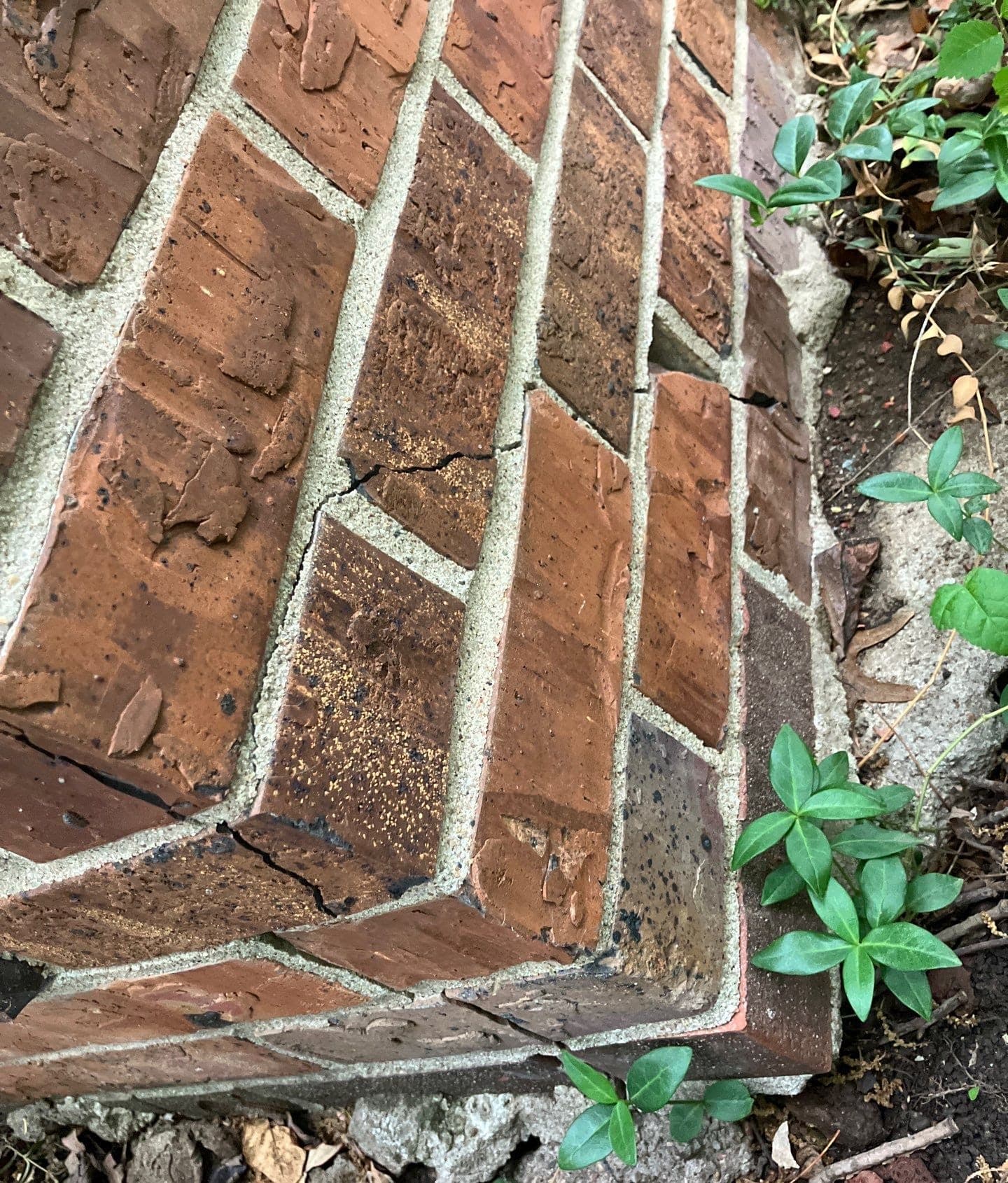

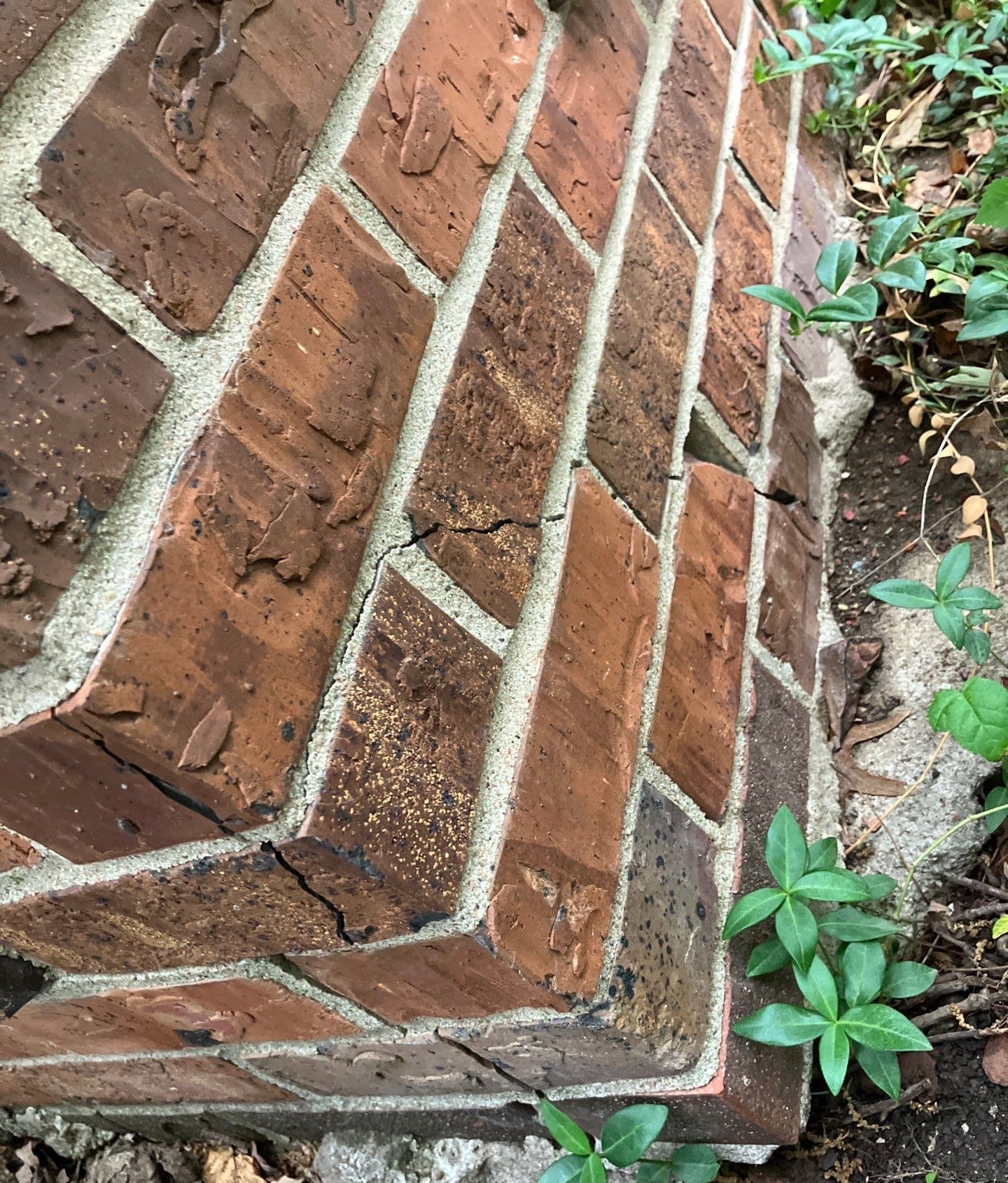

Crack Patterns That Demand a Foundation Inspection
- 01

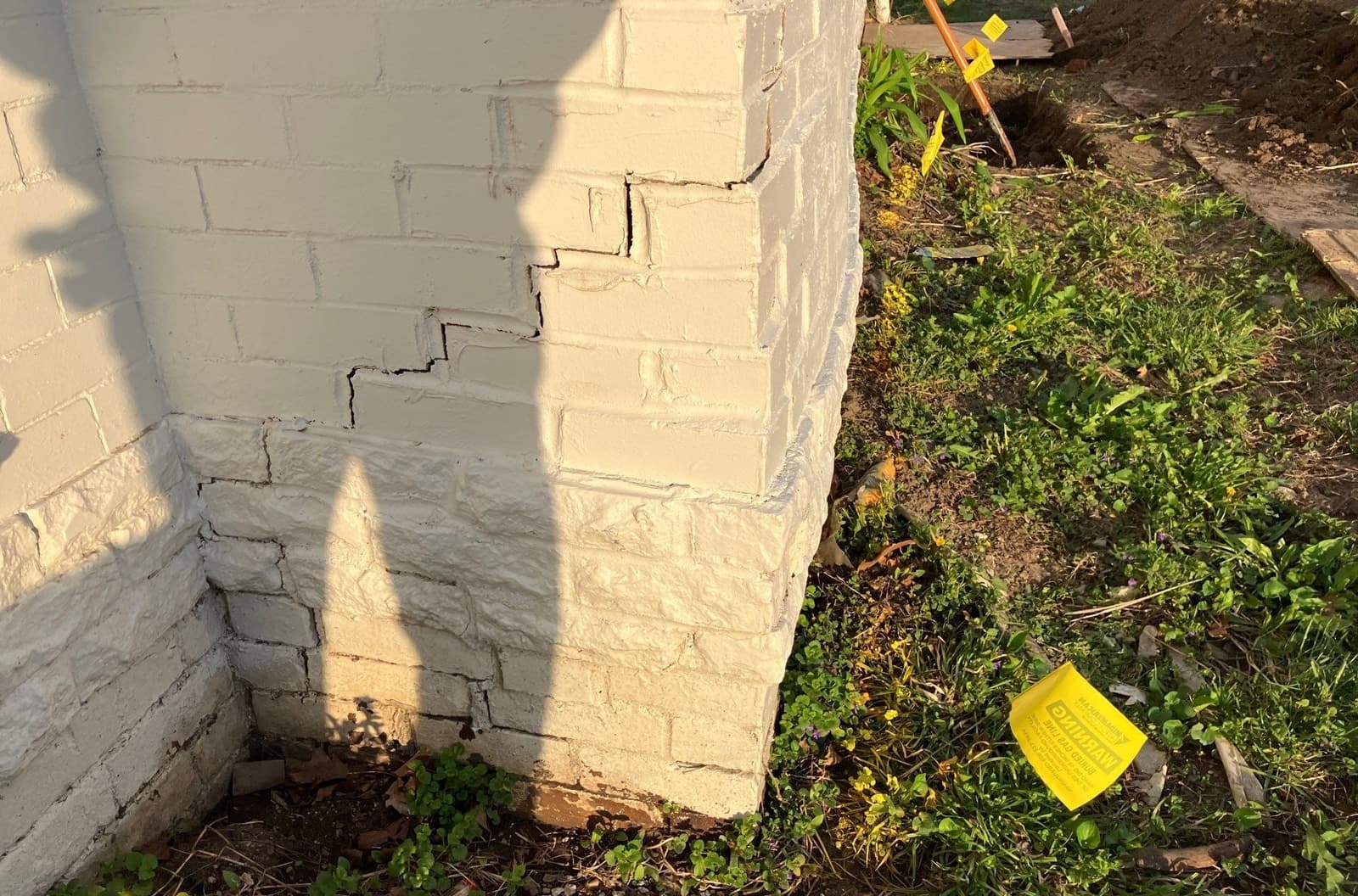

Stair-step cracks following the mortar joints
A stair-step pattern climbing one corner of the house signals differential settlement of the footing beneath it and is structural at any width. A crack wider than 1/10 inch, or wider at the top than the bottom, indicates more active rotation of the wall.
- 02
Vertical cracks running straight through brick faces
A crack that splits the brick itself, not just the mortar, indicates force exceeding the brick's tensile strength. This usually means a lintel has failed, a footing has rotated, or expansive clay has heaved the slab against a non-moving point. Vertical brick-face cracks longer than 18 inches warrant immediate inspection.
- 03
Diagonal cracks fanning from window and door corners
Diagonal cracks at the upper corners of openings indicate frame distortion. The cause is either a failed lintel directly above the opening or foundation movement racking the entire wall.
- 04
Brick courses bulging outward or separating from the wall
A brick wythe that has rotated outward at the top, leaving a visible gap behind the brick at the soffit line, is structurally unsafe. Bulging usually indicates wall tie failure, severe lintel sag, or freeze damage to the brick ties themselves.

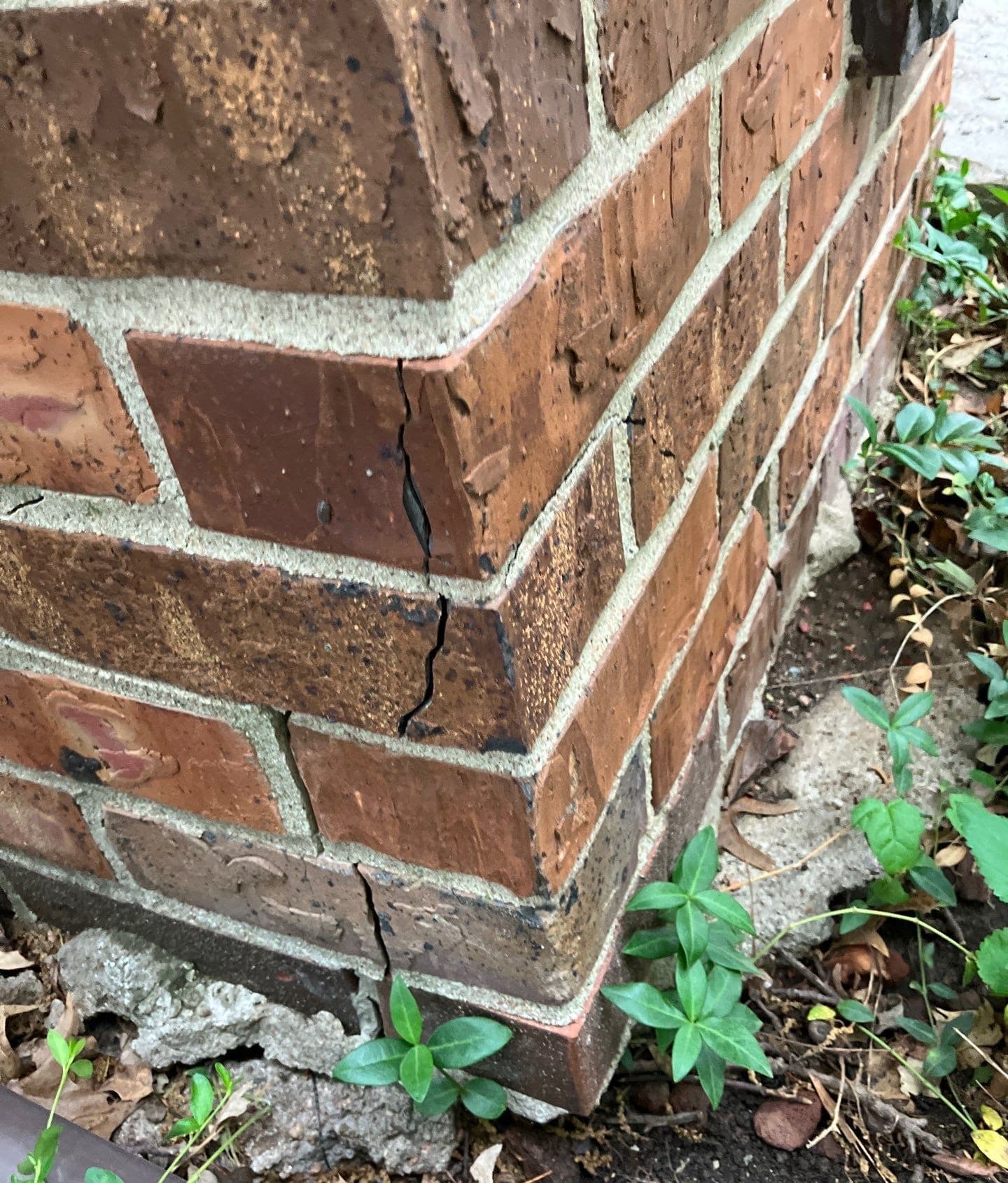

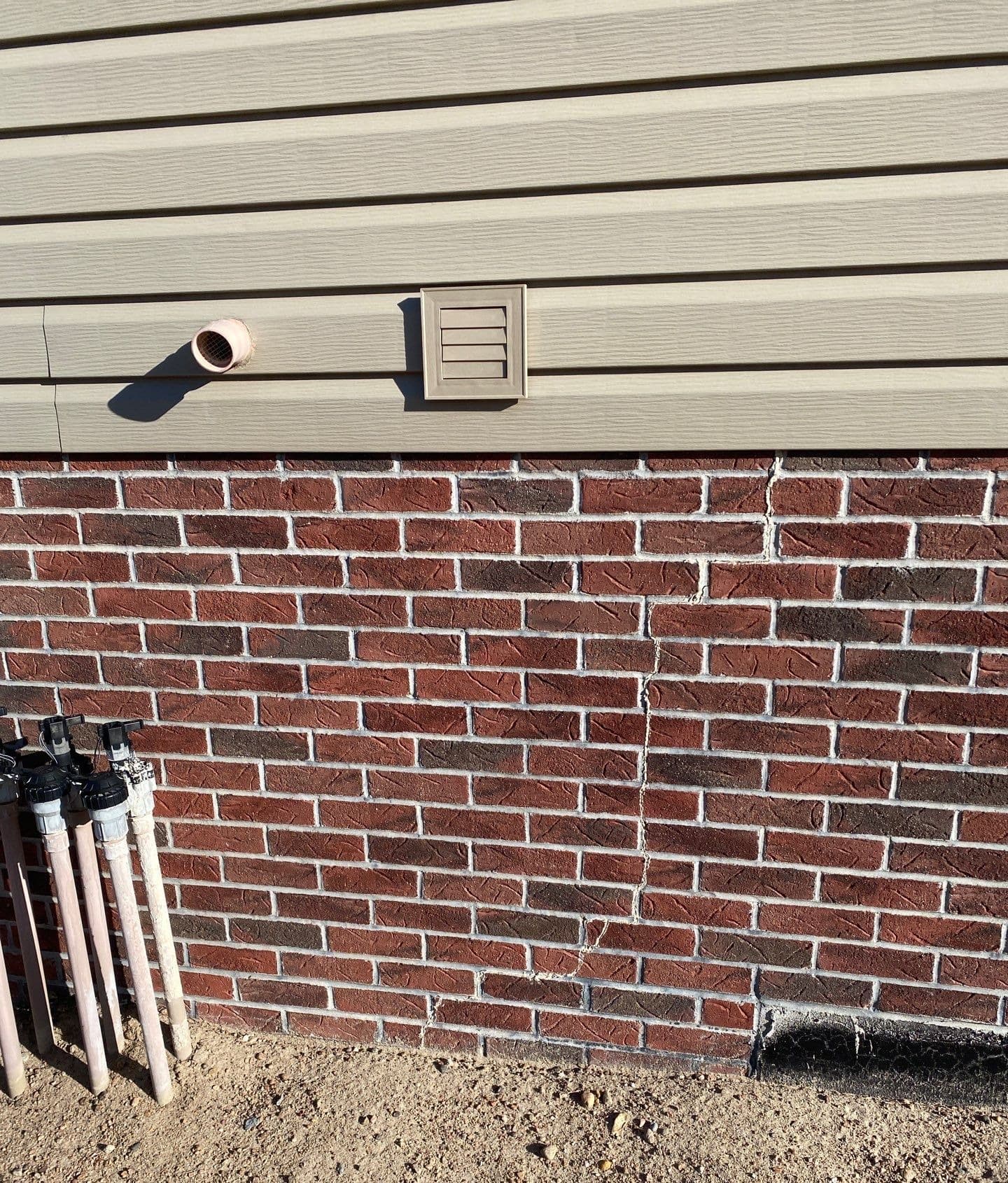

What causes cracked brick veneer diagnosed and stabilized in Midwest homes.
- 01
Differential foundation settlement on loess hilltops
Eastern Nebraska and western Iowa sit on loess: a wind-deposited silt that collapses when it gets wet and consolidates unevenly when it dries. When one corner of a footing drops 1/4 to 3/4 of an inch faster than the rest of the perimeter, the rigid brick veneer cannot bend, so it tears along the weakest line. The mortar joints. Producing a classic stair-step crack.
- 02
Expansive clay heave or shrinkage
Across Kansas, Missouri, and southeast Nebraska, prairie clay with a plasticity index above 30 can change roughly 15% in volume between saturated and bone-dry conditions. That movement lifts and drops slab edges and perimeter footings on a seasonal cycle, and the brick veneer cracks along whichever mortar joint is weakest. Wide cracks that open in summer drought and partially close after a wet spring are a strong tell for clay-driven movement, not settlement.
- 03
Steel lintel failure above windows and doors
Lincoln and Omaha homes built between 1955 and 1985 typically used painted steel angle lintels to carry brick over window and door openings. Forty to seventy years of moisture penetration causes the lintel to rust, expand (steel rust occupies roughly 7x the volume of the original steel), and sag. The brick course above the opening cracks diagonally toward the corners. A pattern often misread as foundation settlement.
- 04
Sill plate rot transferring load to brick veneer
Brick veneer is a non-structural skin; the wood-framed wall behind it carries the roof and floor loads. When the sill plate rots from chronic basement moisture or foundation seepage, the framed wall settles into the rotted wood and dumps load onto the brick veneer that was never designed to carry it. Horizontal cracks at the base course or at the band joist line are the result.
- 05
Frost heave at shallow brick ledge footings
Nebraska, Iowa, and northern Missouri cycle through 50 or more freeze-thaw events per winter, and the frost line runs 36 to 42 inches deep across the territory. Brick ledges poured shallower than the frost line, common on porches, additions, and 1940s-era detached structures, lift in winter and settle again in spring. The brick veneer above the ledge cracks horizontally near grade. This pattern is rare on the main house but very common on attached porches and chimneys.
How foundation repair specialists actually fix cracked brick veneer diagnosed and stabilized.
Solving cracked brick veneer diagnosed and stabilized means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Nebraska, Iowa, Kansas, and Missouri homes.
Engineered foundation repair solutions for this problem.
Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.
Helical Piers
When a foundation has settled into soft or eroding soil, surface-level repairs treat the symptom. Helical piers transfer the structure's load to deep bearing soil, stopping settlement permanently, often restoring lost elevation.
Push Piers
Epp Foundation Repair has installed resistance push piers under settling Nebraska, Iowa, Kansas, and Missouri foundations since 1994. Driven to refusal under the structure's own weight, warrantied for life on the pier itself.
Foundation Underpinning
Epp Foundation Repair has driven engineered piers through Nebraska loess and Kansas clay since 1994. Helical, push, and slab piers, matched to the soil and the structure.
Carbon Fiber Reinforcement
Epp Foundation Repair has reinforced bowed walls across Nebraska, Iowa, Kansas, and Missouri since 1994. No interior steel, no excavation, no lost basement space.
Deep Foundation Systems
Epp Foundation Repair has stabilized settling structures across Nebraska, Iowa, Kansas, and Missouri since 1994 by carrying the load past weak surface soil to firm ground below. Stop the settlement, then attempt to recover what you can.
Epoxy Crack Injection
Epp Foundation Repair has injected foundation cracks across Nebraska, Iowa, Kansas, and Missouri since 1994, and uses sequential polyurethane plus epoxy when one alone won't hold.
Why foundation movement in Nebraska and Iowa needs a regional diagnosis
Loess soils across eastern Nebraska and western Iowa lose strength when wet. Expansive clay across northeast Kansas and northwest Missouri swells and shrinks with the seasons. Foundation movement here behaves differently than in states with stable bearing soil, which is why our diagnosis starts with the soil under the home, not just the crack on the wall.
Loess soils and the crack patterns they produce
Most of eastern Nebraska and western Iowa sits on wind-deposited loess, a fine, silty soil 10 to 200+ feet deep. Loess holds its structure when dry but loses cohesion rapidly when saturated. After a wet spring, saturated loess expands against foundation walls. After a dry Nebraska summer, it contracts, pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently on the Lincoln, Omaha, Council Bluffs corridor.
The Marshall and Sharpsburg loess series, dominant across the eastern Nebraska service area, are particularly prone to this cyclical volume change. Homes built in the 1960s, 1980s on uncompacted loess backfill show the highest incidence of progressive settlement cracking in our inspection data.
Frost depth, freeze-thaw cycles, and horizontal cracking
Eastern Nebraska's 36, 42" frost penetration depth means the soil below grade freezes and thaws 60, 80 times per year. Each cycle applies lateral pressure to basement walls. A wall that holds through ten cycles can fail in the eleventh if drainage has worsened, backfill has settled, or the wall was already at capacity. Horizontal cracks near the soil grade line are almost always a freeze-thaw story in this region.
In eastern Kansas, expansive clay pockets near the surface introduce a different failure mode. Consistent volume change regardless of frost depth. Horizontal cracking in Kansas foundations typically traces to clay expansion; the same pattern in Nebraska more often indicates frost-driven hydrostatic pressure.
"On a loess hilltop in southeast Lincoln, I have watched the same stair-step crack pattern climb the southwest corner of three different houses on the same block. The pattern is not a brick problem. The brick is reading the foundation, and the foundation is reading the soil."
