Stabilize and Pull Back Bowing Basement Walls With Helical Tiebacks

The variation depends on wall length, anchor count required by the design load, soil conditions behind the wall (denser till takes longer to advance through than loess), and whether existing horizontal cracks need epoxy injection before tensioning. A Customized Repair Estimate after on-site inspection reflects your scope. Dave Epp has never quoted a tieback job sight-unseen and won't.

Properly designed tiebacks actively pull the wall back, typically one to two inches over the staged tensioning sequence. The amount of recovery depends on how long the wall has been bowed, the wall material (poured concrete recovers less than block), and whether the original cause has been addressed. Epp Foundation Repair documents baseline deflection before tensioning and final deflection after, so the homeowner has measured evidence of the pull-back. Walls that have been bowed for decades or that have failed at the cove joint may recover less than newer bows. Epp gives an honest range during the inspection rather than promising a return to plumb.

Ask about the warranty that applies to your tieback project; every Epp warranty is written into the proposal. It transfers to the next owner if the property sells, which matters when a buyer's inspector flags the basement repair work.

Bowing walls do not self-correct. The same expansive-clay pressure that bowed the wall keeps pressing every spring saturation and every freeze-thaw cycle, and once a wall has horizontally cracked it has lost most of its remaining tensile capacity. Epp Foundation Repair has documented Nebraska basements move from one-inch deflection to three-plus inches across two spring seasons. Past about three inches of deflection, tiebacks become harder to engineer and full wall replacement enters the conversation. Typically five to ten times the cost of timely tieback installation. Waiting also risks the cove joint failing, at which point the wall is no longer a candidate for any stabilization system.

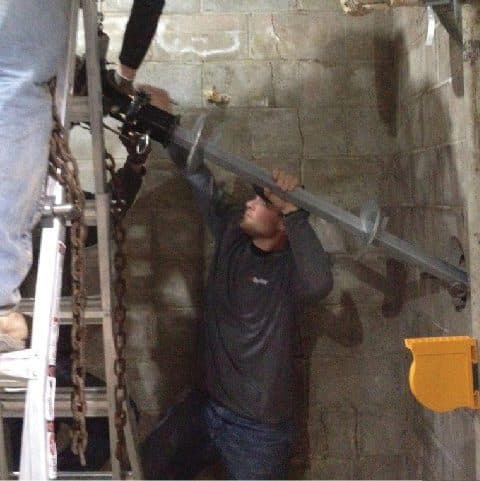

Both systems pull a bowing wall back toward plumb, but the mechanics and the yard impact are different. Wall anchors use an exterior earth-anchor plate buried 8 to 12 feet from the foundation in an excavated pit, with a rod running through the wall to an interior plate. The homeowner sees yard restoration work and a temporary exterior pit. Tiebacks drill the helical anchor horizontally through the wall itself, advancing into native soil behind the wall under torque. No exterior excavation, no yard disturbance. Tiebacks are the typical choice on Lincoln and Omaha urban lots where neighbor setbacks or mature landscaping make exterior pits impractical; wall anchors are the typical choice on larger rural and suburban lots where yard access is easy and the homeowner prefers the lower per-anchor cost.

Tiebacks work on both poured concrete and concrete block (CMU) walls. On block walls, Epp Foundation Repair pays particular attention to the bearing plate location relative to mortar joints and uses an oversized plate when the load point falls near a joint, which distributes the tensioning load across multiple courses rather than concentrating it on one block. The staged tensioning protocol matters more on block walls. Applying full load in a single pass can shear a mortar joint, while three to five passes over 24 to 72 hours lets the wall recover gradually.
