Cracked Concrete Floors Diagnosed by Cause and Stabilized at the Source
Epp Foundation Repair has read concrete floor cracks across Nebraska, Iowa, Kansas, and Missouri since 1994. Crack width alone never tells the whole story; the pattern, the location, and the movement history do.
Let's take the first step toward a healthy home.
A local specialist will inspect your foundation, walk you through the findings, and send a clear estimate, no cost, no pressure.
Concrete Floor Cracks Diagnosed by Cause, Not by Width Alone: diagnosed and explained.
Concrete floor cracks come from a few different causes, and the cause decides the repair: shrinkage as the slab cures, settlement where the perimeter drops, heave where the center rises, and voids where the support under the slab is gone. Since 1994, Dave Epp and his crew have inspected homes across Lincoln, Omaha, Grand Island, Norfolk, and St. Joseph, and most of the floor cracks they see are simple shrinkage cracks no more than 1/10 inch wide that require no repair at all. The rest point to a sub-slab cause. Eroded fill, plumbing leak, expansive clay heave, or perimeter settlement, and crack width alone is not enough to tell them apart. Pattern and re-measurement do the diagnostic work.

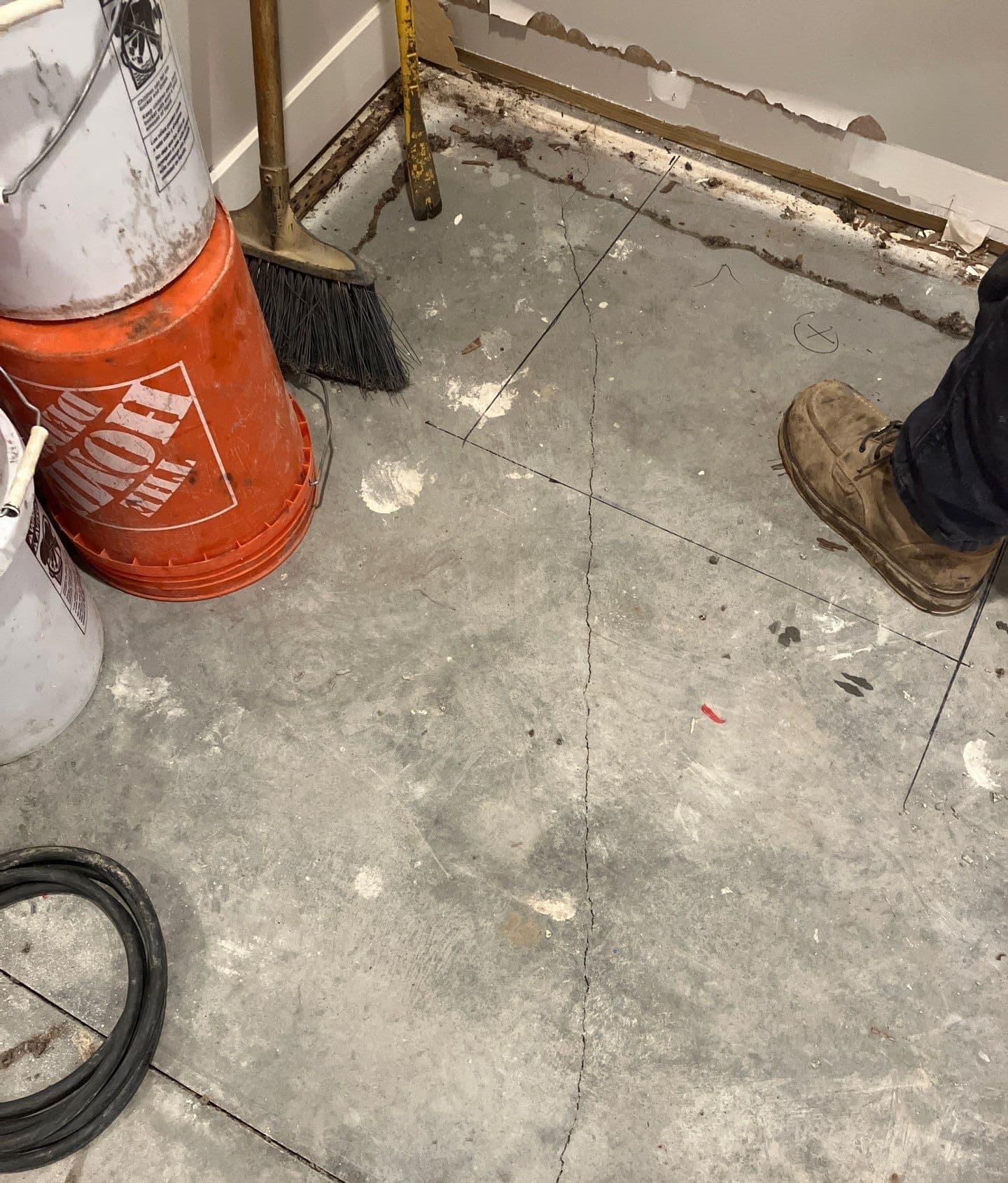

Floor Crack Patterns That Demand a Sub-Slab Inspection
- 01
Cracks wider than 1/10 inch that have grown in the last 12 months
Any concrete floor crack over 1/10 inch wide is past the shrinkage threshold and indicates either settlement, heave, or void. Documented growth (a photo with a coin for scale a year ago, compared to today) confirms active movement and triggers a crack monitor installation.
- 02
Crack paired with a damp spot or hollow sound when tapped
A floor crack accompanied by a persistent damp patch, an unexplained water bill increase, or a hollow ring when the slab is tapped near the crack almost always means a sub-slab void has formed.
- 03
Crack parallel to the perimeter wall, 12 to 24 inches off the wall
A long crack running parallel to the basement or garage wall, located one to two feet from the wall, is the textbook signature of perimeter slab settlement on loess or silt. The crack opens as the slab edge drops away from the perimeter footing.
- 04
Crack across slab center paired with interior doors rubbing at the top
A diagonal or branching crack across the interior of a slab-on-grade floor, paired with interior doors that now rub at the top of the jamb rather than the bottom, points to slab heave from expansive clay swelling beneath the slab center.

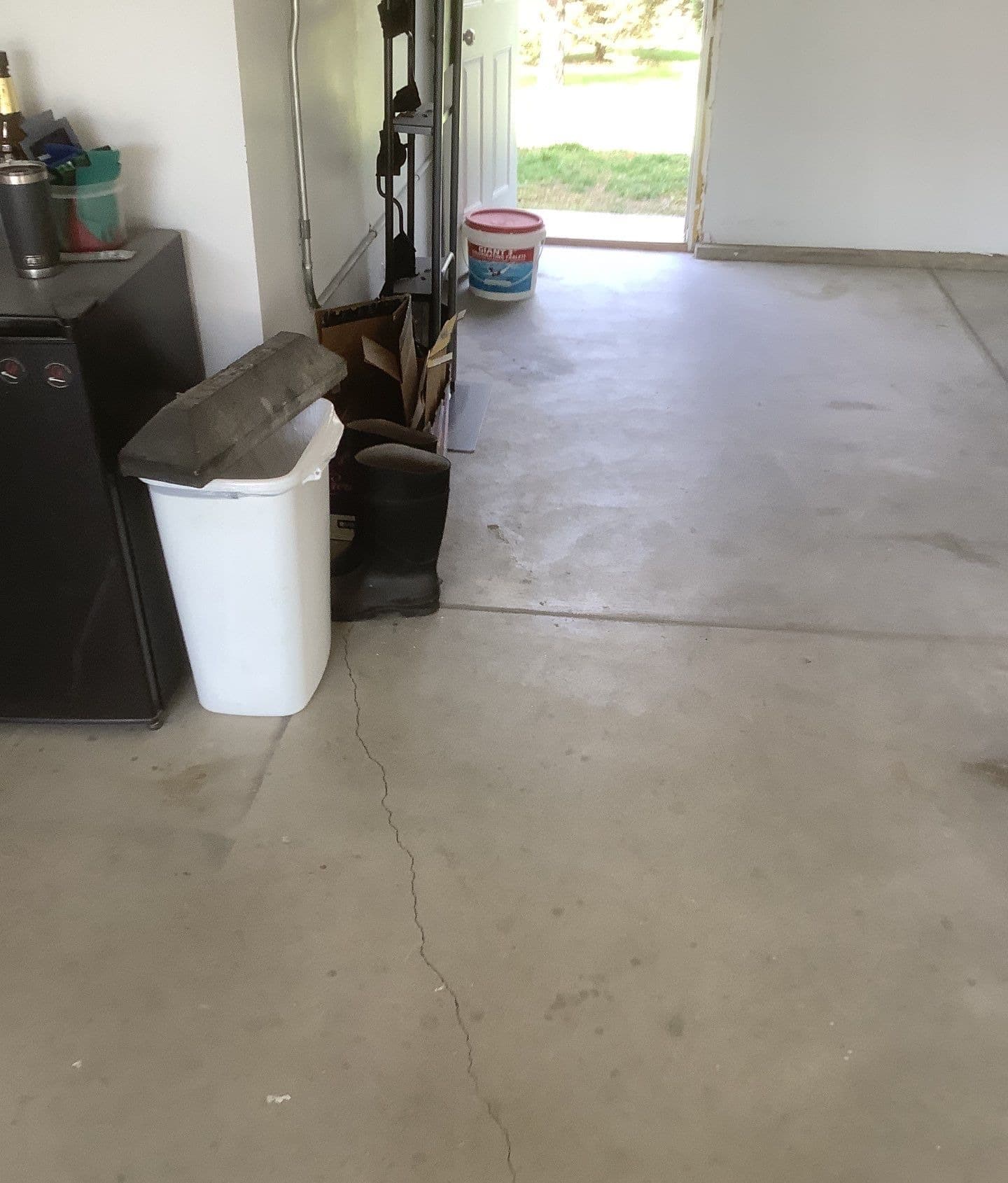

What causes concrete floor cracks diagnosed by cause, not by width alone in Midwest homes.
- 01
Concrete shrinkage during cure (cosmetic, inevitable)
All concrete loses roughly 0.04 to 0.06 inches of length per 10 feet during the first year of cure as water evaporates. Slabs poured without enough control joints, or with control joints spaced more than 8 to 10 feet apart on a 4-inch slab. Will crack on their own line to relieve the stress. Hairline shrinkage cracks no more than 1/10 inch wide with straight, parallel edges are cosmetic.
- 02
Perimeter slab settlement on loess and silt fill
Across eastern Nebraska and western Iowa, basement and garage slabs poured on uncompacted loess backfill or silt sub-base settle 1/2 to 2 inches over the first 20 years of the home's life. The slab edges drop, the slab center stays put, and a crack forms parallel to the perimeter wall. Often 12 to 24 inches off the wall. Where the slab snaps along its weakest line.
- 03
Expansive clay heave at slab center
Across Kansas, Missouri, and southeast Nebraska, slab-on-grade floors built over prairie clay (plasticity index above 30) heave at the center when the clay swells from a plumbing leak, downspout discharge, or seasonal saturation. The slab edges, anchored by the perimeter footing, stay down; the center rises 1/2 to 1-1/2 inches. The crack pattern is a long, diagonal or branching crack across the slab interior, often paired with interior door rubbing at the top of the jamb.
- 04
Void from plumbing leak or eroded sub-slab fill
A pinhole leak in a buried supply line or sewer can erode 5 to 20 cubic feet of fill from beneath a slab over a few months, leaving an unsupported span. The slab eventually cracks across the void, and the crack widens fast (sometimes an eighth of an inch or more in 30 days). This pattern usually shows up first as a damp spot, an unexplained water bill increase, or a hollow sound when the slab is tapped.
- 05
Cold-joint failure and freeze-thaw spalling at slab edges
Cold joints between two pours that did not bond cleanly become natural failure lines. Combined with the 50-plus freeze-thaw cycles per winter that Nebraska, Iowa, and northern Missouri experience, water entering a cold joint can expand and lift one side of the joint roughly 9% in volume per freeze. Slab edges near exterior doors and garage thresholds are the most common locations.
How foundation repair specialists actually fix concrete floor cracks diagnosed by cause, not by width alone.
Solving concrete floor cracks diagnosed by cause, not by width alone means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Nebraska, Iowa, Kansas, and Missouri homes.
Engineered foundation repair solutions for this problem.
Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.
Epoxy Crack Injection
Epp Foundation Repair has injected foundation cracks across Nebraska, Iowa, Kansas, and Missouri since 1994, and uses sequential polyurethane plus epoxy when one alone won't hold.
Polyurethane Foam Injection
Epp Foundation Repair has injected mid-soil polyurethane under settled slabs and foundations across Nebraska, Iowa, Kansas, and Missouri since 1994. Engineered lift in fifteen minutes.
Polyurethane Foam Injection
Epp Foundation Repair has injected closed-cell structural foam beneath driveways, sidewalks, garage floors, and pool decks across Nebraska, Iowa, Kansas, and Missouri since 1994. The slab lifts. The void fills. The work finishes in a single day.
Carbon Fiber Reinforcement
Epp Foundation Repair has reinforced bowed walls across Nebraska, Iowa, Kansas, and Missouri since 1994. No interior steel, no excavation, no lost basement space.
Deep Foundation Systems
Epp Foundation Repair has stabilized settling structures across Nebraska, Iowa, Kansas, and Missouri since 1994 by carrying the load past weak surface soil to firm ground below. Stop the settlement, then attempt to recover what you can.
Expansion Joints
Epp Foundation Repair has placed and resealed expansion joints across Nebraska, Iowa, Kansas, and Missouri since 1994. A good joint gives concrete room to move so it cracks where you want it to, not where you don't.
Why foundation movement in Nebraska and Iowa needs a regional diagnosis
Loess soils across eastern Nebraska and western Iowa lose strength when wet. Expansive clay across northeast Kansas and northwest Missouri swells and shrinks with the seasons. Foundation movement here behaves differently than in states with stable bearing soil, which is why our diagnosis starts with the soil under the home, not just the crack on the wall.
Loess soils and the crack patterns they produce
Most of eastern Nebraska and western Iowa sits on wind-deposited loess, a fine, silty soil 10 to 200+ feet deep. Loess holds its structure when dry but loses cohesion rapidly when saturated. After a wet spring, saturated loess expands against foundation walls. After a dry Nebraska summer, it contracts, pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently on the Lincoln, Omaha, Council Bluffs corridor.
The Marshall and Sharpsburg loess series, dominant across the eastern Nebraska service area, are particularly prone to this cyclical volume change. Homes built in the 1960s, 1980s on uncompacted loess backfill show the highest incidence of progressive settlement cracking in our inspection data.
Frost depth, freeze-thaw cycles, and horizontal cracking
Eastern Nebraska's 36, 42" frost penetration depth means the soil below grade freezes and thaws 60, 80 times per year. Each cycle applies lateral pressure to basement walls. A wall that holds through ten cycles can fail in the eleventh if drainage has worsened, backfill has settled, or the wall was already at capacity. Horizontal cracks near the soil grade line are almost always a freeze-thaw story in this region.
In eastern Kansas, expansive clay pockets near the surface introduce a different failure mode. Consistent volume change regardless of frost depth. Horizontal cracking in Kansas foundations typically traces to clay expansion; the same pattern in Nebraska more often indicates frost-driven hydrostatic pressure.
"In a basement on the north side of Lincoln, I once measured a crack at 1/16 inch in March and 3/16 inch in August of the same year. The slab wasn't failing. The crack monitor reading just kept moving because a downspout had been pointing at the foundation since the house was built in 1974. Fix the downspout first. The crack stopped growing the next spring."
