Commercial Slab Settlement: Signs, Causes, and Repair Options
Warehouse, shop, and retail floors settle when the soil under them gives way. Epp Foundation Repair finds where the slab has moved and why, then plans the repair around the building's operations.
Let's take the first step toward a healthy home.
A local specialist will inspect your foundation, walk you through the findings, and send a clear estimate, no cost, no pressure.

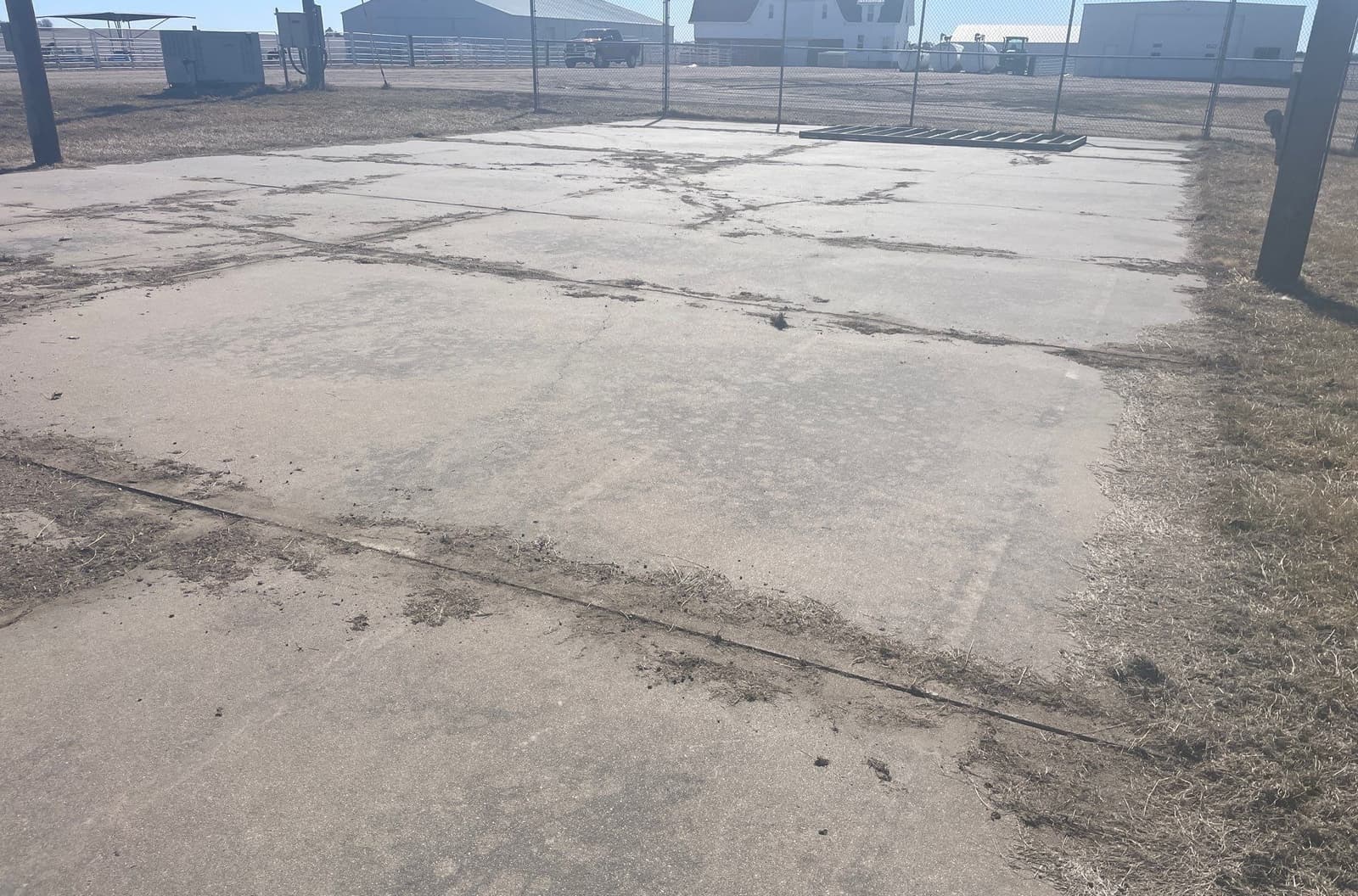

Commercial Slab Settlement: diagnosed and explained.
Commercial slab settlement is a floor slab in a warehouse, shop, retail space, or other commercial building that has dropped in one area. A slab depends on the soil underneath it for support. When that soil compresses, washes out, or was never compacted well, part of the slab can settle, tilt, or crack. Settlement often shows up first at joints, where one panel ends up lower than the next, or along an exterior wall where water reaches the soil. In a building with forklifts, racking, or heavy equipment, even a small drop can interrupt daily work. A site walk and measurements show where the slab has moved and whether the movement is likely to continue.

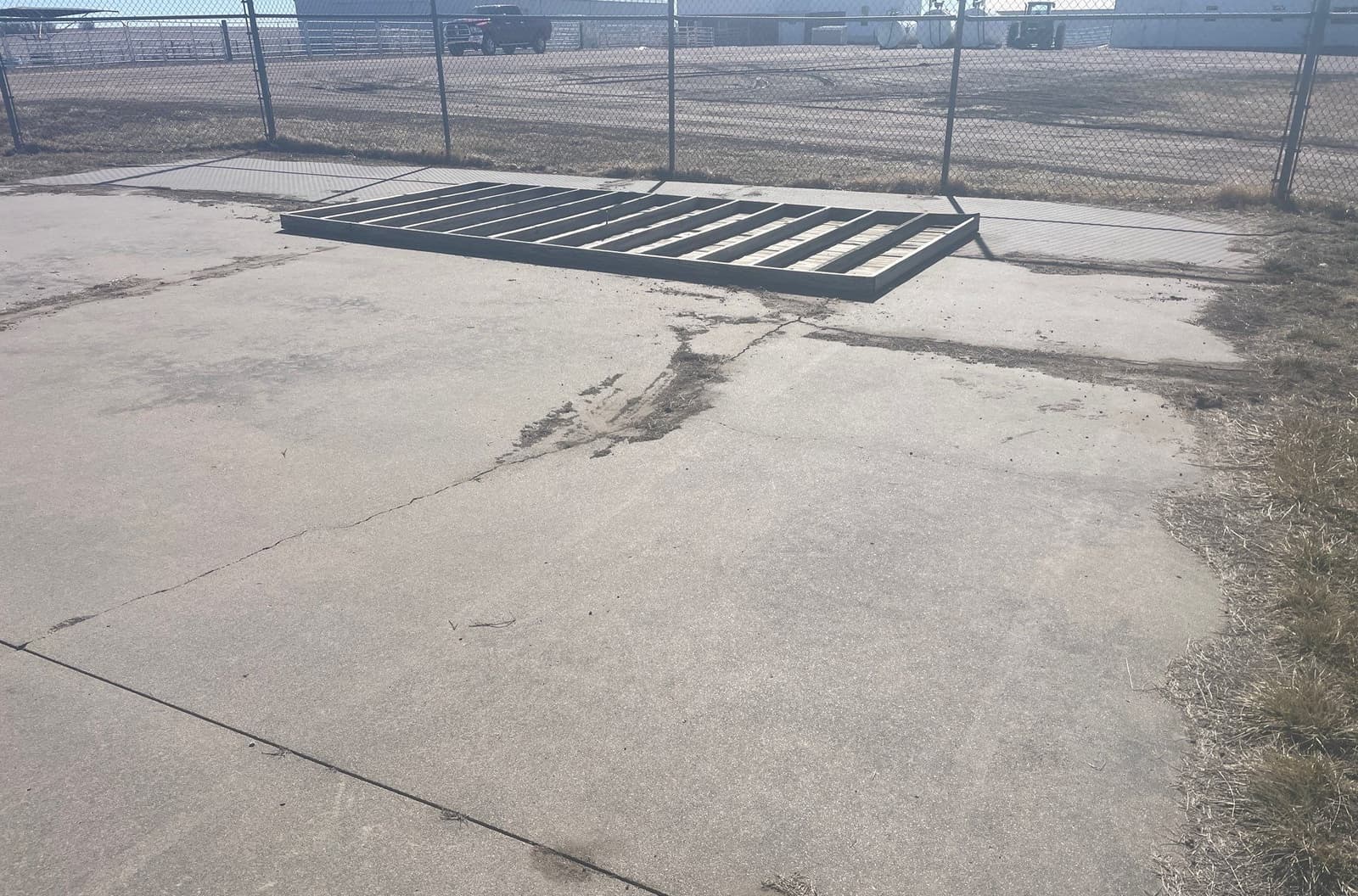

Watch for these in a commercial floor.
- 01
Joints that no longer line up
One slab panel sitting lower than the next leaves a raised edge that forklifts and carts bump over.
- 02
Cracks across the floor
Cracks that run across a panel, or that keep widening, can mean the soil under that area is moving.
- 03
Racking out of plumb
Storage racks that lean or no longer sit level can point to a slab that has dropped under their base plates.
- 04
Gaps under walls and doors
A gap opening between the floor and an interior wall, or an overhead door that no longer seals, can mean the slab has settled.
- 05
Water collecting in one area
A low spot that holds water after cleaning or rain often marks the area that settled.

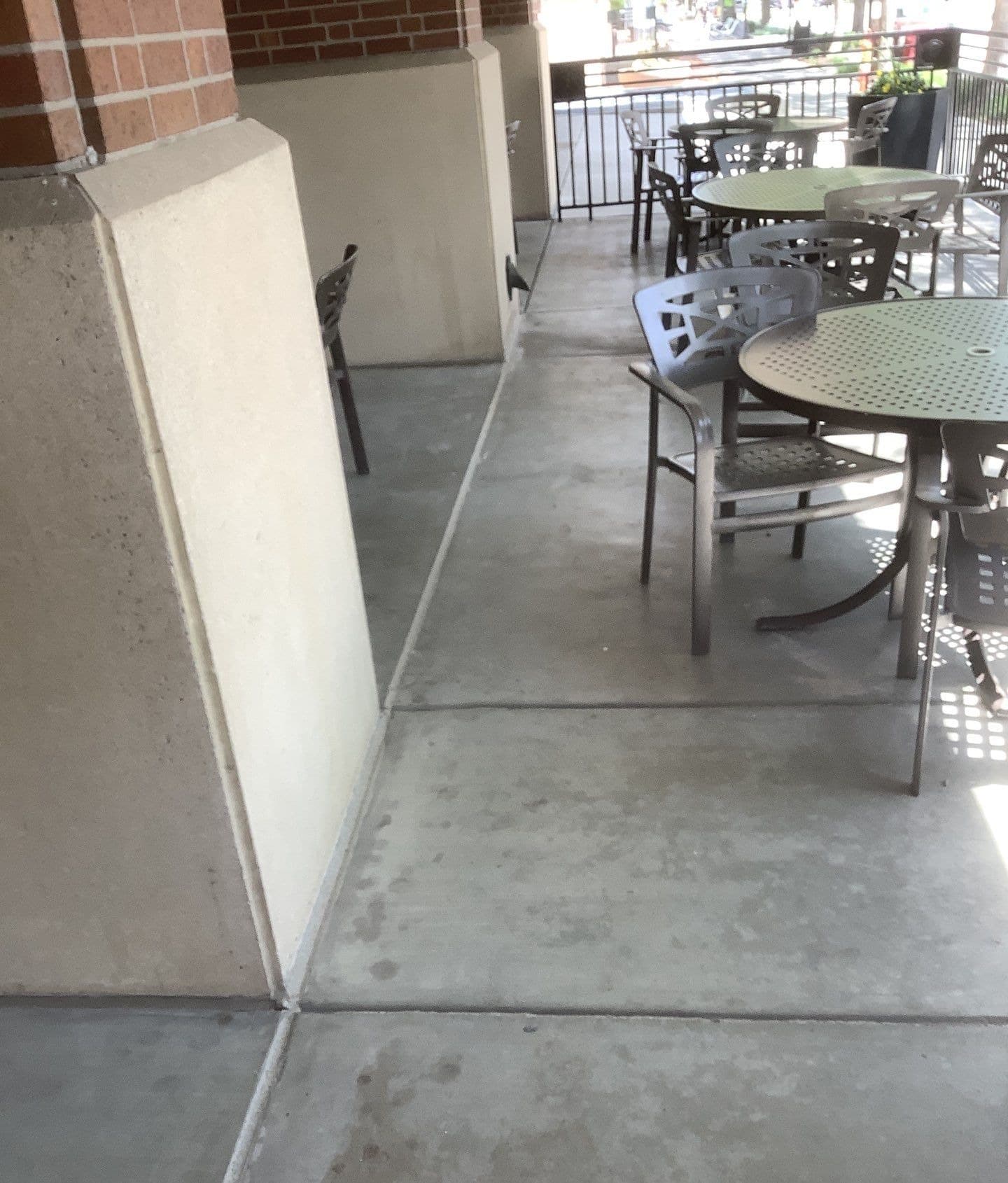

What causes commercial slab settlement in Midwest homes.
- 01
Poorly Compacted Fill
Fill placed under a slab during construction may not have been compacted in even layers. It can keep compressing under load for years, and the slab settles with it.
- 02
Utility Trenches
Soil placed back into trenches for water, sewer, or electrical lines often settles more than the soil around it.1 A low line across a floor can follow the path of a trench.
- 03
Water Under the Slab
Roof drains, downspouts, or a leaking pipe can carry water under a slab. Water can soften clay and loess soils and wash fine soil out, which leaves voids. Lifting a slab without fixing the water source can lead to a repeat problem.
- 04
Heavy, Concentrated Loads
Racking, equipment, and forklift traffic put a lot of weight on small areas. A slab or a soil layer that was not built for that load can settle under it.
How commercial specialists actually fix commercial slab settlement.
Solving commercial slab settlement means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Nebraska, Iowa, Kansas, and Missouri homes.
Engineered commercial solutions for this problem.
Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.
Polyurethane Foam (Commercial)
PolyLift polyurethane foam injection that lifts and stabilizes settled commercial slabs, sidewalks, parking areas, and golf course cart paths without tearing out the concrete.
Commercial Helical Piers
Helical pier systems for solar array ground mounts, communications towers, lift stations, new commercial footings, and settling commercial buildings, installed to the engineer of record's specification.
How do soil and climate in Nebraska and Iowa affect buildings and slabs?
Buildings and slabs rest on the soil under them, so when that soil gets wetter, drier or colder, they can move.
Based on NOAA 1991 to 2020 climate normals for Lincoln Municipal Airport and Omaha Eppley Airfield.
What kind of soil is around Lincoln and Omaha?
Based on USDA soil survey data for Lancaster County (Lincoln) and Douglas County (Omaha), clay is the main soil type in both counties. The survey rates Lancaster County high and Douglas County moderate for shrink swell. Clay can swell when it gets wet and shrink as it dries, so a slab or foundation on clay can move up and down with the seasons. The soils that cover the most ground in Lancaster County are Wymore and Aksarben, and in Douglas County they are Contrary and Marshall.
Loess, the wind deposited silt common in eastern Nebraska and western Iowa, can lose strength and settle when it gets wet. Water can reach it from runoff, a plumbing leak or a downspout that empties next to the house.
How does freezing weather affect footings and basement walls?
In Lincoln and Omaha, soil near the surface can freeze and thaw many times between fall and spring. Each city's building code sets a frost line depth, which is the minimum depth below finished grade for a footing. It is 36 inches in Lincoln and 42 inches in Omaha. Supports that sit above that depth, such as some porches, stoops and chimney footings, can move as the ground freezes and thaws.
Horizontal cracks in a basement wall are more often linked to pressure from the soil outside the wall than to settlement. Wet soil pushes harder against a wall than dry soil, and soil that freezes against the wall can add to that pressure.
Climate: NOAA U.S. Climate Normals 1991 to 2020, LINCOLN MUNI AP (USW00014939) and OMAHA EPPLEY AIRFIELD (USW00014942), retrieved September 30, 2026. Soil: USDA NRCS Soil Data Access (SSURGO), county survey for Lancaster County and Douglas County. Frost line depth: Lincoln Municipal Code 20.12.140 and Omaha Municipal Code Sec. 43-127.
"On commercial work the first question I ask is what's the load class and what's the production schedule. The repair method follows from that. Foam in the light-load areas, slab piers under the forklift lanes, and we work the hours that don't shut you down."
Care and expertise from a team that's been doing this since 1994.
Epp Foundation Repair is locally owned and operated, with crews dedicated exclusively to foundation, basement, and concrete work across the Midwest.
Foundation repair, waterproofing, and concrete leveling are our entire focus, not a sideline.
Three decades of experience with Midwest soils, basements, and weather conditions.
Recognized by the Better Business Bureau for integrity and ethical business practices.
Many of our repairs carry a written Epp warranty. The warranty page lists every covered repair and its terms.
Answers to common questions about Commercial Slab Settlement.
Don't see your question here? Our team is happy to help. Reach out anytime.
Sources
- Investigation of Improved Utility Cut Repair Techniques to Reduce Settlement in Repaired Areas (TR-503). Institute for Transportation, Iowa State University, 2005. Back to text
