Diagnose Your Cracked Driveway Before the Hairlines Become Structural Failures
Epp Foundation Repair has assessed and repaired cracked driveways across Nebraska, Iowa, Kansas, and Missouri since 1994, separating cosmetic shrinkage from structural failure with on-site engineering documentation.
Let's take the first step toward a healthy home.
A local specialist will inspect your foundation, walk you through the findings, and send a clear estimate, no cost, no pressure.

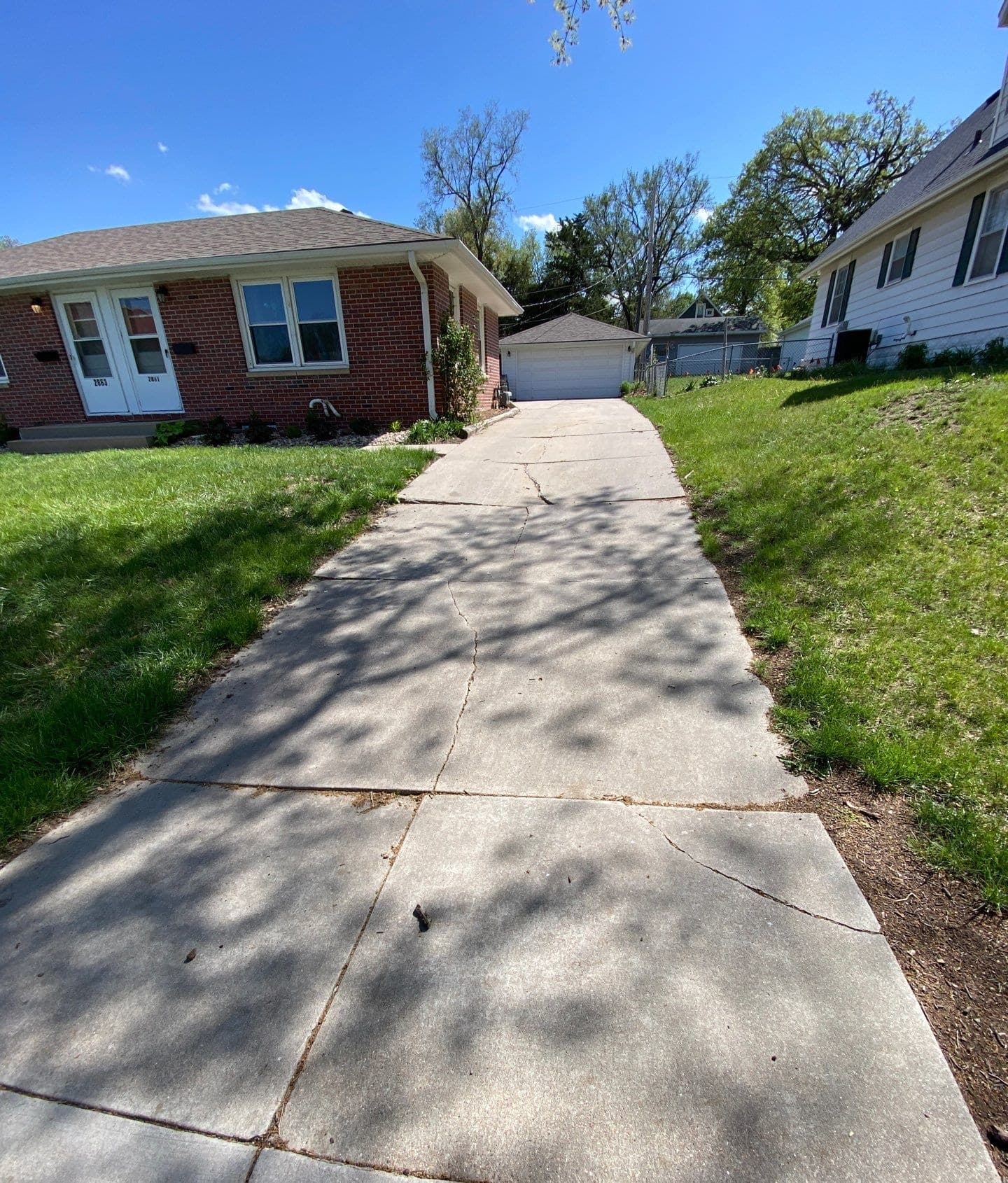

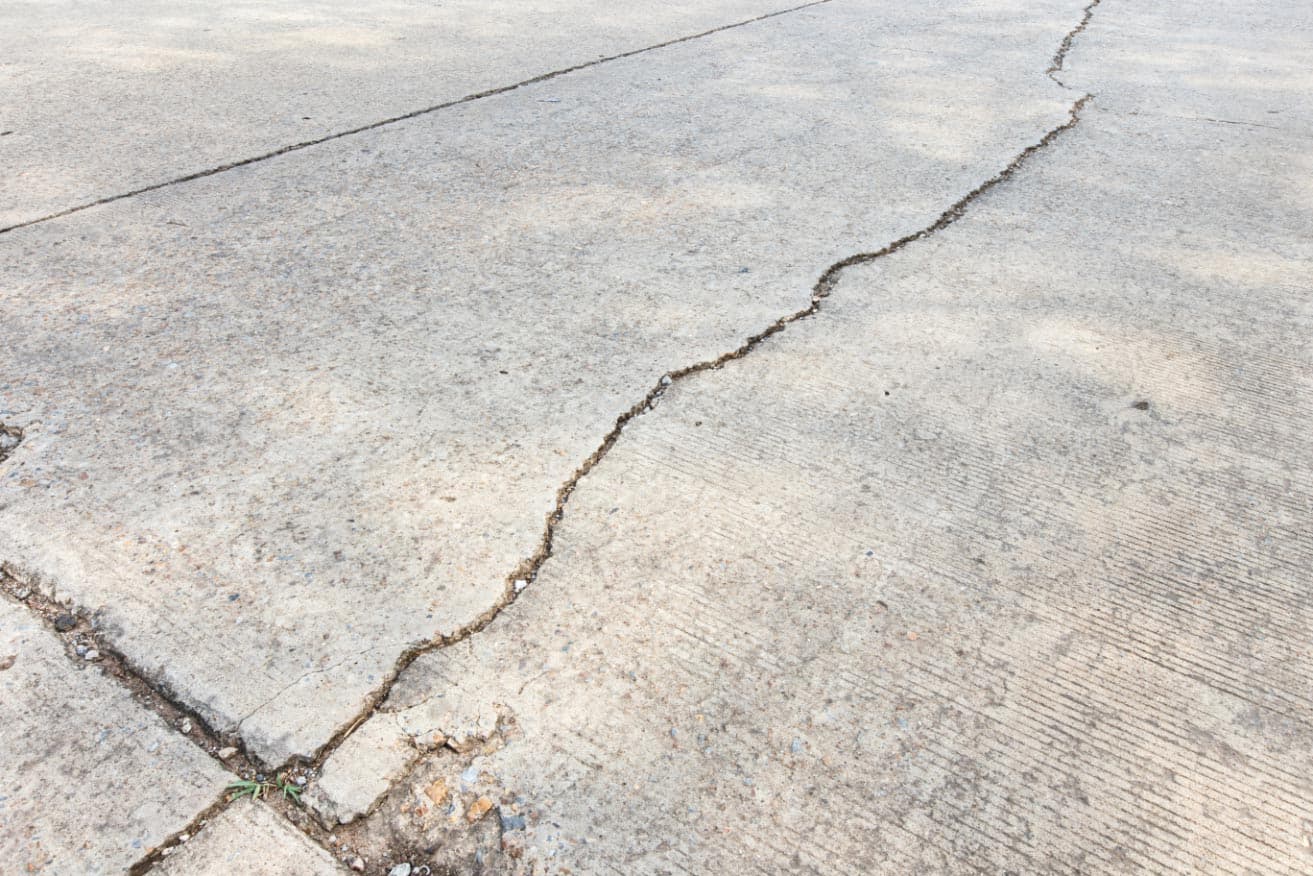

Cracked Driveway: diagnosed and explained.
Epp Foundation Repair fields cracked driveway calls across the Lincoln, Omaha, Kansas City, and St. Joseph markets, and the diagnostic split matters more than the count. Dave Epp's technicians categorize cracks into four severity tiers: hairline shrinkage cracks at under 1/16 inch are cosmetic and stable; widening cracks 1/16 to 1/4 inch indicate active subgrade movement; structural cracks over 1/4 inch with vertical or lateral displacement require lifting plus sealing; and fragmented panels with multi-directional break-through patterns require sectional replacement, which Epp performs as a new pour once the ground that caused the failure is corrected. Most inspections produce a lift-and-seal scope, with sealing alone or a full replacement needed less often.
Why Cracked Driveways Get Expensive Fast Once Cracks Widen
- 01
Crack Width Exceeds 1/4 Inch
A crack you can fit a pencil into has lost its self-sealing properties. Water enters freely, freezes to expand 9%, and widens the crack a further 0.5 to 2 millimeters per cycle. Once a crack exceeds 1/4 inch.
- 02
Vertical or Lateral Displacement Across the Crack
When the two sides of a crack have moved relative to each other vertically (one side higher than the other) or laterally (the crack has opened in a sliding pattern), the panel has structurally failed. Foam lifting plus sealing can restore function if displacement is under 1 inch.
- 03
Multi-Directional Crack Pattern or Map Cracking
A network of intersecting cracks forming map-like polygons indicates either advanced subgrade failure or alkali-silica reaction in the concrete itself. Map cracking is not lift-fixable. The slab has lost cohesive strength throughout its volume and must be replaced.
- 04
Active Surface Spalling or Rebar Showing
When the top 1/4 inch of slab paste has scaled off exposing aggregate or, worse, exposing corroded rebar, the slab has lost its weather seal and the steel is actively corroding.

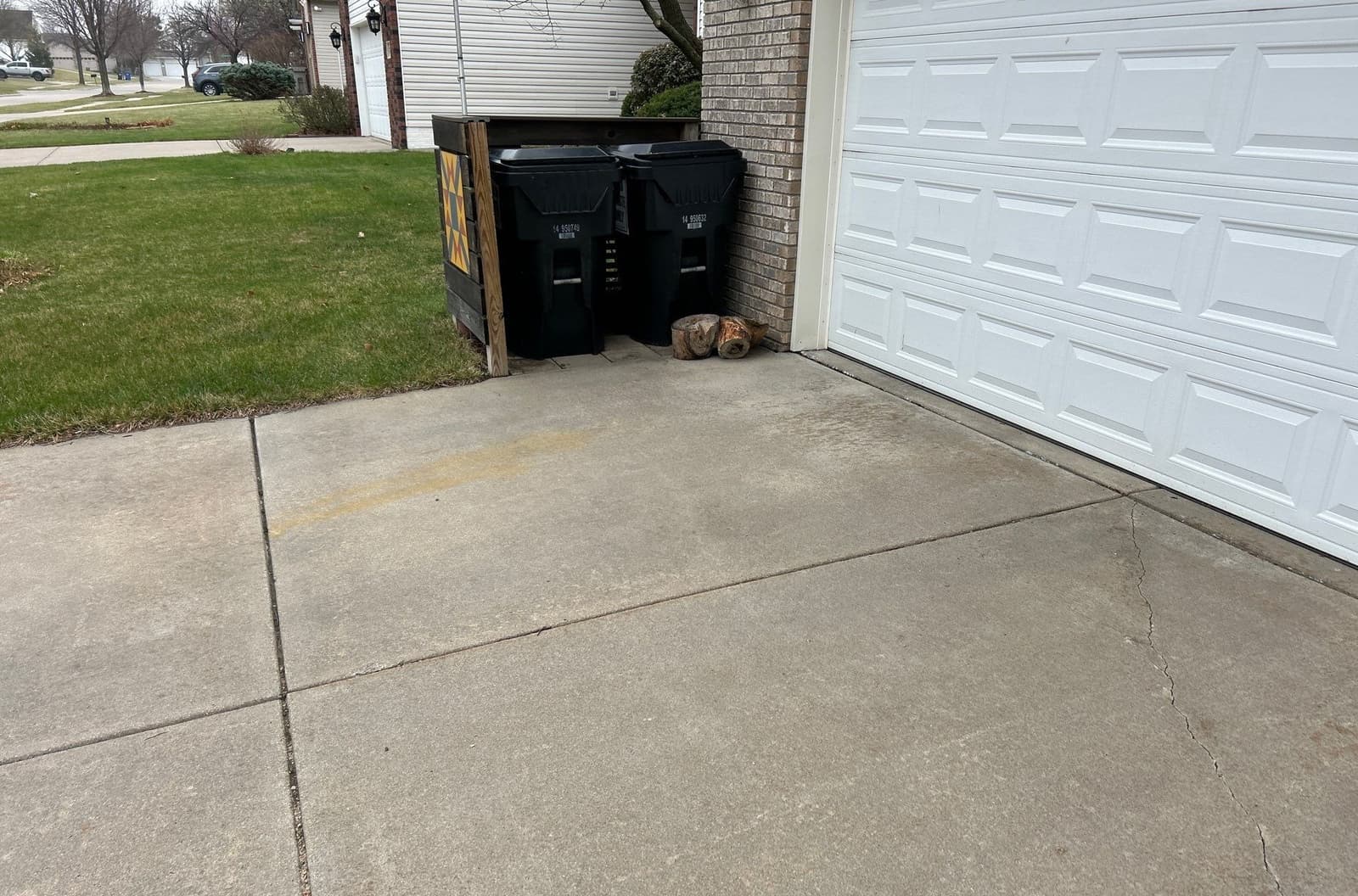

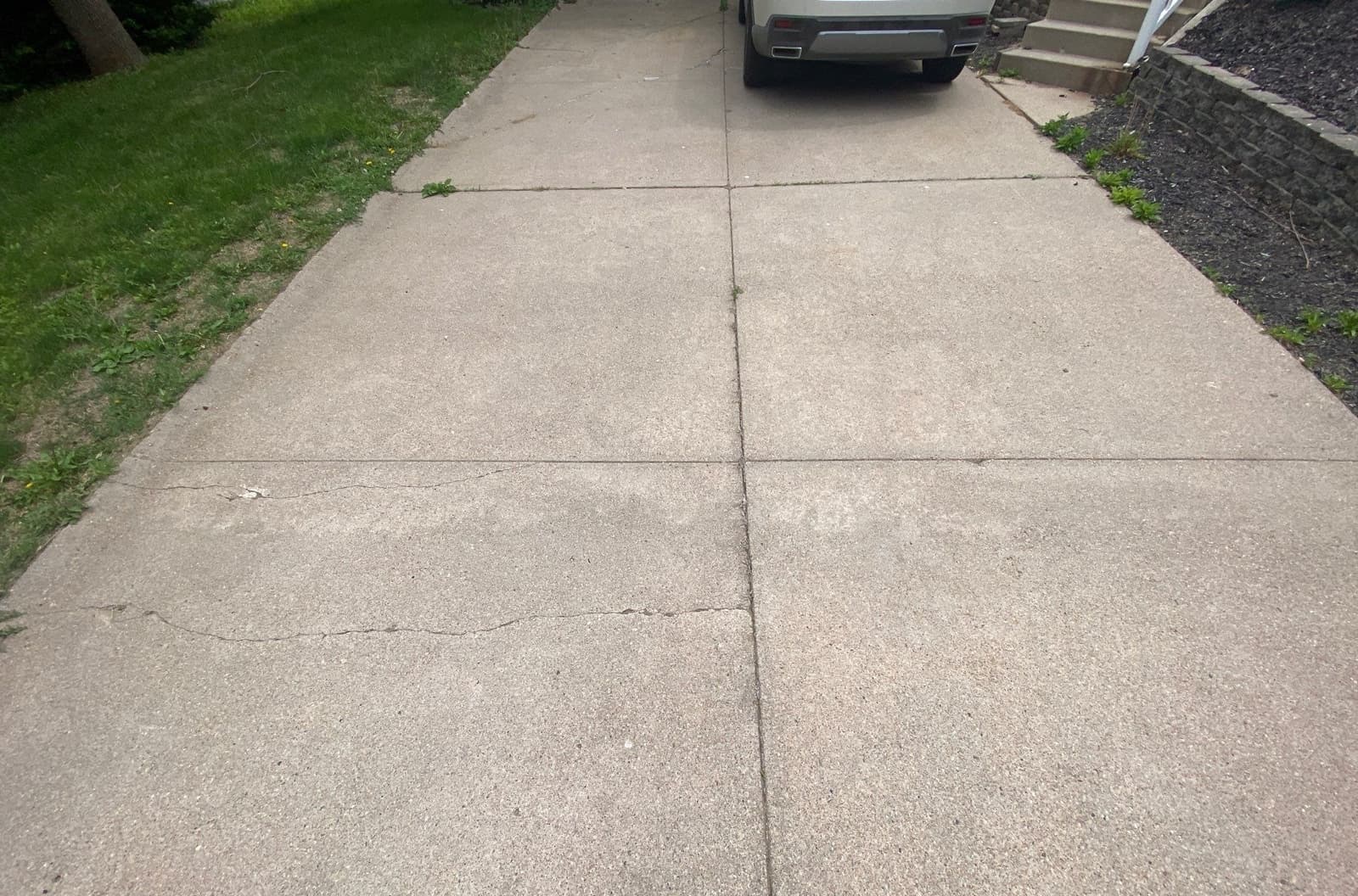

What causes cracked driveway in Midwest homes.
- 01
Concrete Shrinkage During Initial Cure
Concrete shrinks 0.04 to 0.08 percent of its volume during the first 90 days of curing. On a 60-foot driveway pour without properly spaced control joints (joints should be 24 to 36 times the slab thickness in spacing, so 8 to 12 feet for a 4-inch driveway), this shrinkage produces hairline cracks at random locations as the slab finds its own relief points. These cracks are cosmetic and stable provided they do not widen over time.
- 02
Loess And Expansive Clay Subgrade Movement
Driveways built on loess fill along the Missouri and Platte river corridors settle 1 to 4 inches over 10 to 30 years as the loess hydroconsolidates 2 to 6 percent on first deep saturation. Expansive clay subgrades in central Nebraska and northern Kansas with plasticity indexes above 30 swing 12 to 15 percent in volume seasonally, fatiguing the slab until cracks form along the perpendicular axis of greatest stress.
- 03
Freeze-Heave Cycling On Wet Subgrade
When subgrade moisture content exceeds 18% in November and the soil freezes to 9% volumetric expansion, the frozen ground lifts the driveway 1/4 to 3/4 inch per cycle. The slab doesn't always return fully on thaw, accumulating differential movement that cracks the slab transversely. 50 to 80 freeze-thaw cycles per year in NE/IA/KS/MO compound this faster than most regions of the country.
- 04
Salt-Driven Subgrade Erosion And Surface Damage
Sodium chloride and magnesium chloride de-icers applied through 5 to 7 winters wash subgrade fines out through control joints and saw cuts. The result is a void under the driveway that drops 1 to 3 inches under vehicle load, cracking the panel along the void perimeter. The same salts attack the surface paste, producing scaling that exposes aggregate. Driveways poured before 1990 without entrained air or epoxy-coated rebar deteriorate 3 to 5 times faster.
- 05
Vehicle Load Failure On Inadequate Slab Thickness
Residential driveways are typically poured 4 inches thick on prepared subgrade. A 5,500-pound SUV plus 3,500 pound trailer concentrates 18,000 to 22,000 pounds of point load on a single tire patch when stopped. Over 15 to 25 years of daily cycling, slabs thinner than 5 inches develop fatigue cracks under the wheel paths. Epp Foundation Repair sees this pattern most on driveways serving boats, RVs, and contractor work trucks.
- 06
Expansion Joint Failure And Joint-Adjacent Cracking
Expansion joints between driveway sections and between driveway and apron handle thermal movement. When the joint sealant fails (typical service life 7 to 12 years in NE/IA climate), water enters and freezes, the joint widens, and cracks form parallel to the joint as the panel edges lose support. Re-sealing joints every 8 to 10 years prevents many of the crack patterns Dave Epp documents on residential driveways.
How concrete repair specialists actually fix cracked driveway.
Solving cracked driveway means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Nebraska, Iowa, Kansas, and Missouri homes.
Engineered concrete repair solutions for this problem.
Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.
Mid-Soil Polyurethane Foam Injection for Foundations
When the fill under a slab-on-grade foundation or a footing consolidates or washes out, Epp Foundation Repair injects structural polyurethane foam into the soil beneath it to restore support and attempt lift. Stabilization is guaranteed; lift is attempted, never promised.
Concrete Joint & Crack Sealing
Epp Foundation Repair has sealed concrete expansion joints and stable cracks with self-leveling polyurethane across Nebraska, Iowa, Kansas, and Missouri since 1994. Flexible material that handles 50+ freeze-thaw cycles a winter without splitting.
Concrete Pouring
Some slabs cannot be saved by leveling. Epp Foundation Repair pours new flatwork on properly prepared ground across Nebraska, Iowa, Kansas, and Missouri. We tell you honestly when a fresh pour is the smarter spend.
Why concrete fails differently in Nebraska, Iowa, Kansas, and Missouri
Loess soils consolidate under slabs after the first deep water exposure. Expansive clay heaves and contracts seasonally. Salt damage from frequent winter freeze-thaw cycling accelerates surface failure. Generic concrete repair ignores the soil under the slab, which is why settled concrete returns within a season or two. Regional repair starts with the cause underneath, not the crack on top.
Loess soils and the crack patterns they produce
Most of eastern Nebraska and western Iowa sits on wind-deposited loess, a fine, silty soil 10 to 200+ feet deep. Loess holds its structure when dry but loses cohesion rapidly when saturated. After a wet spring, saturated loess expands against foundation walls. After a dry Nebraska summer, it contracts, pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently on the Lincoln, Omaha, Council Bluffs corridor.
The Marshall and Sharpsburg loess series, dominant across the eastern Nebraska service area, are particularly prone to this cyclical volume change. Homes built in the 1960s, 1980s on uncompacted loess backfill show the highest incidence of progressive settlement cracking in our inspection data.
Frost depth, freeze-thaw cycles, and horizontal cracking
Eastern Nebraska's 36, 42" frost penetration depth means the soil below grade freezes and thaws 60, 80 times per year. Each cycle applies lateral pressure to basement walls. A wall that holds through ten cycles can fail in the eleventh if drainage has worsened, backfill has settled, or the wall was already at capacity. Horizontal cracks near the soil grade line are almost always a freeze-thaw story in this region.
In eastern Kansas, expansive clay pockets near the surface introduce a different failure mode. Consistent volume change regardless of frost depth. Horizontal cracking in Kansas foundations typically traces to clay expansion; the same pattern in Nebraska more often indicates frost-driven hydrostatic pressure.
"Hairline cracks are not a problem. They're concrete being concrete. The problem is when they widen, when they offset, or when you see a dozen of them in a polygon pattern. After more than two decades on these driveways I can tell the difference in 60 seconds, and that's what saves homeowners from spending replacement money on a slab that just needed sealing."
Care and expertise from a team that's been doing this since 1994.
Epp Foundation Repair is locally owned and operated, with crews dedicated exclusively to foundation, basement, and concrete work across the Midwest.
Foundation repair, waterproofing, and concrete leveling are our entire focus, not a sideline.
Three decades of experience with Midwest soils, basements, and weather conditions.
Recognized in 2011 and 2016 for ethical business practices and customer transparency.
Every repair comes with a written Epp warranty, from 1 year to the lifetime of the structure depending on the product.
