A Sagging Garage Lintel Is Telling You Something.
The horizontal beam above your garage door has dipped, cracked, or pulled away from the wall. That beam carries real weight. A visible sag means the load above it is no longer fully supported, and the cause often sits in the footing or the ground below.
Let's take the first step toward a healthy home.
A local specialist will inspect your foundation, walk you through the findings, and send a clear estimate, no cost, no pressure.

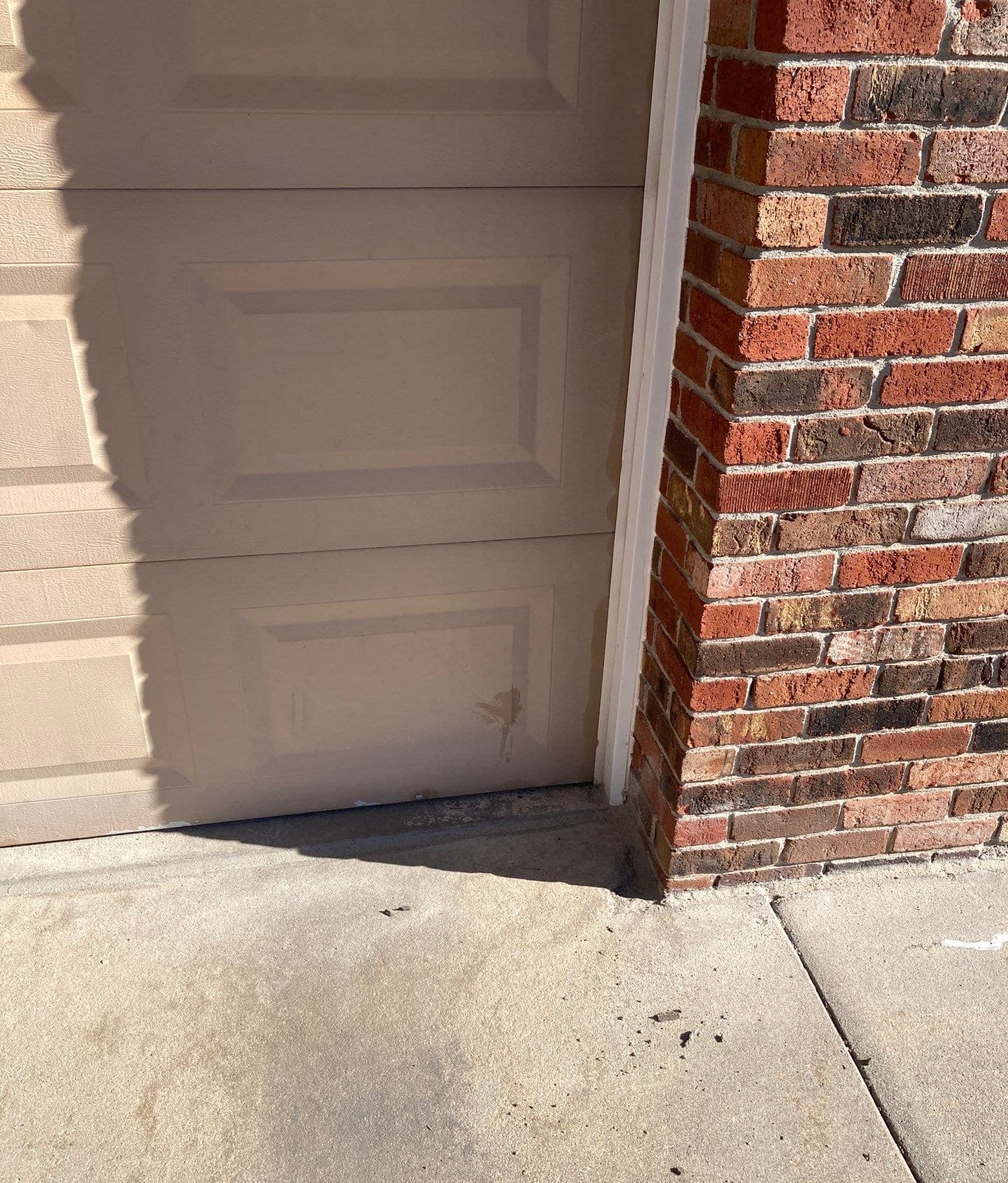

Sagging Lintel Above Garage Door: diagnosed and explained.
A lintel is the beam that spans the top of your garage opening and carries the wall, roof load, and sometimes a room above. A wide garage door creates one of the longest unsupported spans in the house, so any weakness shows up here first. Epp Foundation Repair sees sagging lintels start three ways: the original beam was undersized for the span, the supporting wall or footing on one side has settled, or water and freeze-thaw cycles have weakened the masonry holding it. Across Nebraska, Iowa, Kansas, and Missouri, the ground does most of the damage. Expansive clay and loess soils swell when wet and shrink when dry, and 50 to 70 freeze-thaw cycles a year work the footing up and down. When one side of the opening drops even half an inch, the lintel tilts and cracks open above the door. The reason to act early is simple. A lintel problem caught while it is cosmetic costs far less than one caught after the door binds, the header rotates, or the brick above starts to drop. The crack is the cheap warning. The structural failure is the expensive one.
What We See Above vs. Below Your Foundation Footing
Related to what you are reading. Our team covers the same ground on camera.

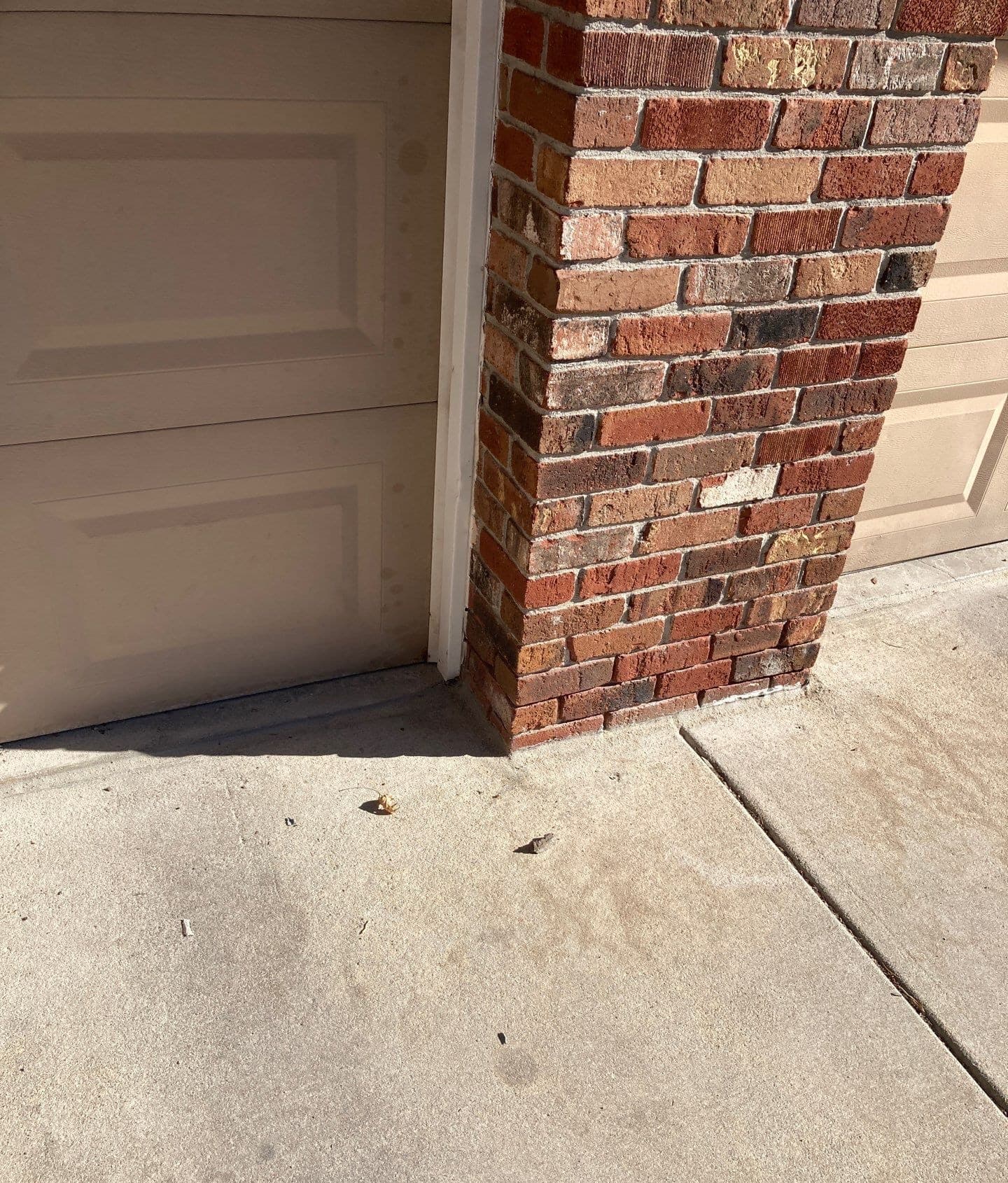

Watch for these warning signs alongside a sagging lintel above the garage door.
- 01
Cracks stepping up from the corners of the garage opening
Diagonal or stair-step cracks fan out from the top corners of the door, where stress concentrates as the beam tilts.
- 02
A visible dip or bow in the beam itself
Sighting along the underside of the lintel shows a sag in the middle or a tilt toward one end.
- 03
The garage door binding or no longer sealing flat
The door catches in the track or leaves a gap at the top because the opening has changed shape.
- 04
Brick or block shifting above the door
Masonry over the opening has dropped, separated, or developed a horizontal joint that has opened up.
- 05
Gaps where the lintel meets the wall on each end
The beam has pulled away from its bearing point, leaving a visible separation at one or both ends.
- 06
Cracks in the foundation wall directly below the opening
Vertical or diagonal cracking in the wall under the garage points to settlement feeding the problem from below.

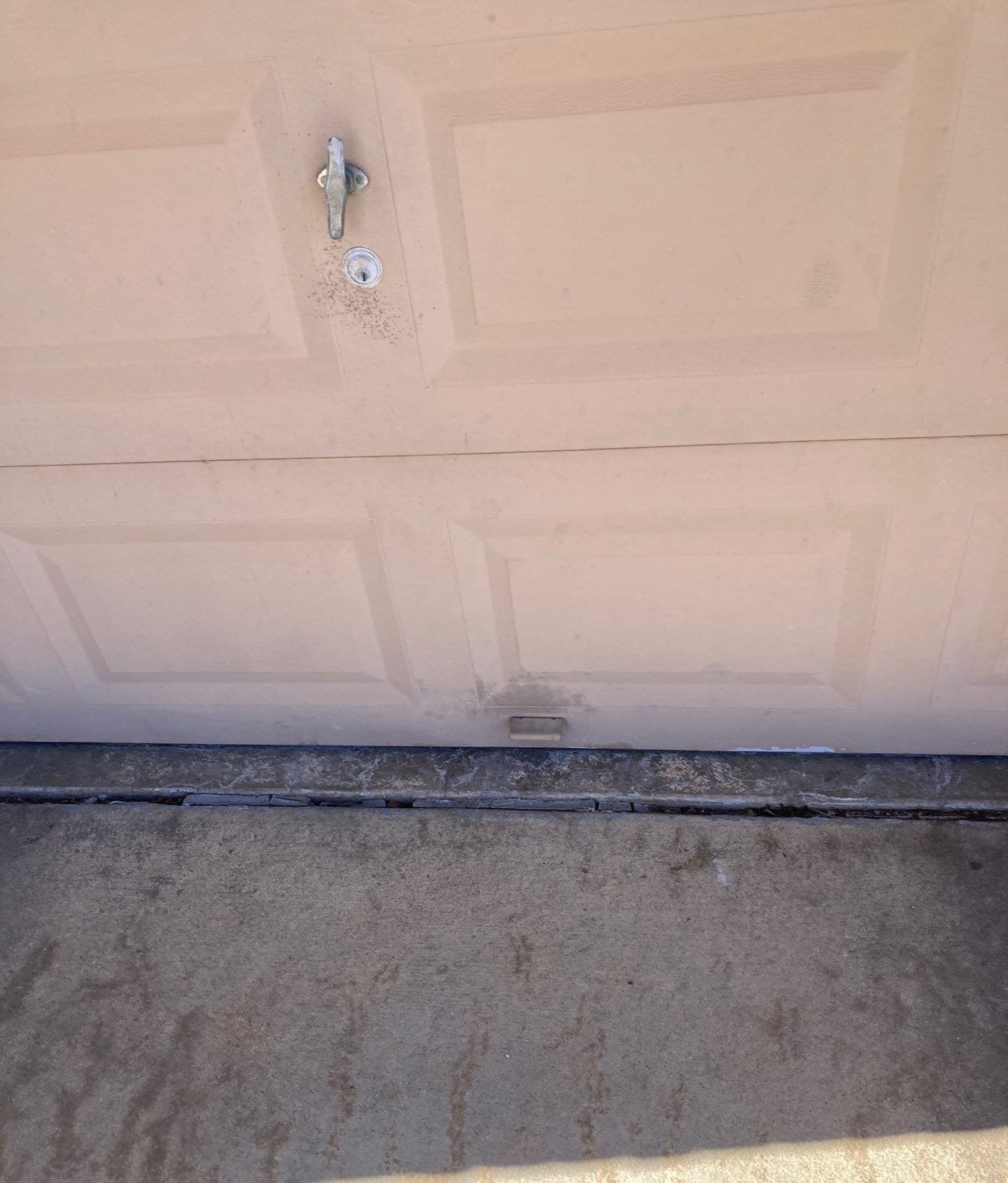

What causes sagging lintel above garage door in Midwest homes.
- 01
Footing Settlement on One Side
When the soil under one side of the garage opening compresses or washes out, that side drops and the lintel tilts. Loess and clay soils in Nebraska and Iowa lose volume as they dry out, which pulls support away from a footing that was never undersized to begin with.
- 02
Undersized or Improperly Installed Beam
Wide garage openings need a beam sized for the span and the load above it. Builders sometimes used a lintel that was too light or set it without proper bearing on each end. The beam holds for years, then begins to deflect as cumulative load and seasonal movement find the weak point.
- 03
Moisture and Freeze-Thaw Damage
Water that runs off the roof or pools at the garage corner soaks the masonry under the lintel ends. With 50 to 70 freeze-thaw cycles a year, that wet block or brick cracks and crumbles, and the bearing surface holding the beam slowly fails.
- 04
Foundation Movement Below the Opening
A sagging lintel is sometimes the visible end of a larger settlement problem in the foundation wall under it. If the footing along the garage wall has moved, the lintel will reflect it, and so will the floor and the door frame nearby.
How foundation repair specialists actually fix sagging lintel above garage door.
Solving sagging lintel above garage door means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Nebraska, Iowa, Kansas, and Missouri homes.
Engineered foundation repair solutions for this problem.
Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.
Carbon Fiber Reinforcement
Epp Foundation Repair has reinforced bowed walls across Nebraska, Iowa, Kansas, and Missouri since 1994. No interior steel, no excavation, no lost basement space.
Deep Foundation Systems
Epp Foundation Repair has stabilized settling structures across Nebraska, Iowa, Kansas, and Missouri since 1994 by carrying the load past weak surface soil to firm ground below. Stop the settlement, then attempt to recover what you can.
Epoxy Crack Injection
Epp Foundation Repair has injected foundation cracks across Nebraska, Iowa, Kansas, and Missouri since 1994, and uses sequential polyurethane plus epoxy when one alone won't hold.
Expansion Joints
Epp Foundation Repair has placed and resealed expansion joints across Nebraska, Iowa, Kansas, and Missouri since 1994. A good joint gives concrete room to move so it cracks where you want it to, not where you don't.
Foundation Underpinning
Epp Foundation Repair has driven engineered piers through Nebraska loess and Kansas clay since 1994. Helical, push, and slab piers, matched to the soil and the structure.
Helical Deck Piers
Epp Foundation Repair has set helical deck piers across Nebraska, Iowa, Kansas, and Missouri since 1994. Steel screwed into firm ground holds a deck level through every freeze-thaw season.
Why foundation movement in Nebraska and Iowa needs a regional diagnosis
Loess soils across eastern Nebraska and western Iowa lose strength when wet. Expansive clay across northeast Kansas and northwest Missouri swells and shrinks with the seasons. Foundation movement here behaves differently than in states with stable bearing soil, which is why our diagnosis starts with the soil under the home, not just the crack on the wall.
Loess soils and the crack patterns they produce
Most of eastern Nebraska and western Iowa sits on wind-deposited loess, a fine, silty soil 10 to 200+ feet deep. Loess holds its structure when dry but loses cohesion rapidly when saturated. After a wet spring, saturated loess expands against foundation walls. After a dry Nebraska summer, it contracts, pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently on the Lincoln, Omaha, Council Bluffs corridor.
The Marshall and Sharpsburg loess series, dominant across the eastern Nebraska service area, are particularly prone to this cyclical volume change. Homes built in the 1960s, 1980s on uncompacted loess backfill show the highest incidence of progressive settlement cracking in our inspection data.
Frost depth, freeze-thaw cycles, and horizontal cracking
Eastern Nebraska's 36, 42" frost penetration depth means the soil below grade freezes and thaws 60, 80 times per year. Each cycle applies lateral pressure to basement walls. A wall that holds through ten cycles can fail in the eleventh if drainage has worsened, backfill has settled, or the wall was already at capacity. Horizontal cracks near the soil grade line are almost always a freeze-thaw story in this region.
In eastern Kansas, expansive clay pockets near the surface introduce a different failure mode. Consistent volume change regardless of frost depth. Horizontal cracking in Kansas foundations typically traces to clay expansion; the same pattern in Nebraska more often indicates frost-driven hydrostatic pressure.
"On a loess hilltop in southeast Lincoln, I have watched the same stair-step crack pattern climb the southwest corner of three different houses on the same block. The pattern is not a brick problem. The brick is reading the foundation, and the foundation is reading the soil."
Care and expertise from a team that's been doing this since 1994.
Epp Foundation Repair is locally owned and operated, with crews dedicated exclusively to foundation, basement, and concrete work across the Midwest.
Foundation repair, waterproofing, and concrete leveling are our entire focus, not a sideline.
Three decades of experience with Midwest soils, basements, and weather conditions.
Recognized in 2011 and 2016 for ethical business practices and customer transparency.
Every repair comes with a written Epp warranty, from 1 year to the lifetime of the structure depending on the product.
