Cracked Garage Floor: Settlement or Just Stress?
Garage floors take more weight and more weather swings than almost any slab in the house. A crack can be a harmless shrinkage line, or it can be the slab settling into soft soil underneath.
Let's take the first step toward a healthy home.
A local specialist will inspect your foundation, walk you through the findings, and send a clear estimate, no cost, no pressure.
Cracked Garage Floor: diagnosed and explained.
A garage floor is a concrete slab poured on soil, and it cracks for the same reasons any slab does. Concrete resists about 3,000 to 4,000 psi of compression but only 300 to 400 psi of tension, so when the ground below moves or the slab carries more load than its support can handle, it fractures. Garage slabs face extra stress that interior floors do not. They sit closer to the frost line, take the full weight of vehicles, and often cover backfill near the foundation that was never compacted as well as undisturbed ground. In Nebraska, Iowa, Kansas, and Missouri, expansive clay and loess shift with moisture, and 50 to 70 freeze-thaw cycles a year heave and drop the slab. The reason to look closely is that a settling garage floor rarely stops on its own. A crack with one side dropping, a slab pulling away from the foundation wall, or a section sinking near the door points to lost support below. Catching it early usually means foam injection can lift and stabilize the slab. Waiting often lets the gap widen until the only option is full replacement.
Watch for these warning signs alongside a cracked garage floor.
- 01
A lip or step where the crack edges meet
A height difference across the crack means the two sections have settled unevenly.
- 02
The slab pulling away from the foundation wall
A widening gap at the wall shows the garage floor is dropping faster than the foundation.
- 03
A dip or low spot near the garage door
Sinking at the door often traces poorly compacted fill below the slab.
- 04
A hollow sound when tapped
A drum-like tone signals a void where soil has pulled away from the slab.
- 05
Water running toward the back wall instead of the door
A reversed slope means the slab has tilted from settlement.
- 06
Cracks at the driveway-to-garage joint
Separation at that joint shows the apron and slab are moving at different rates.

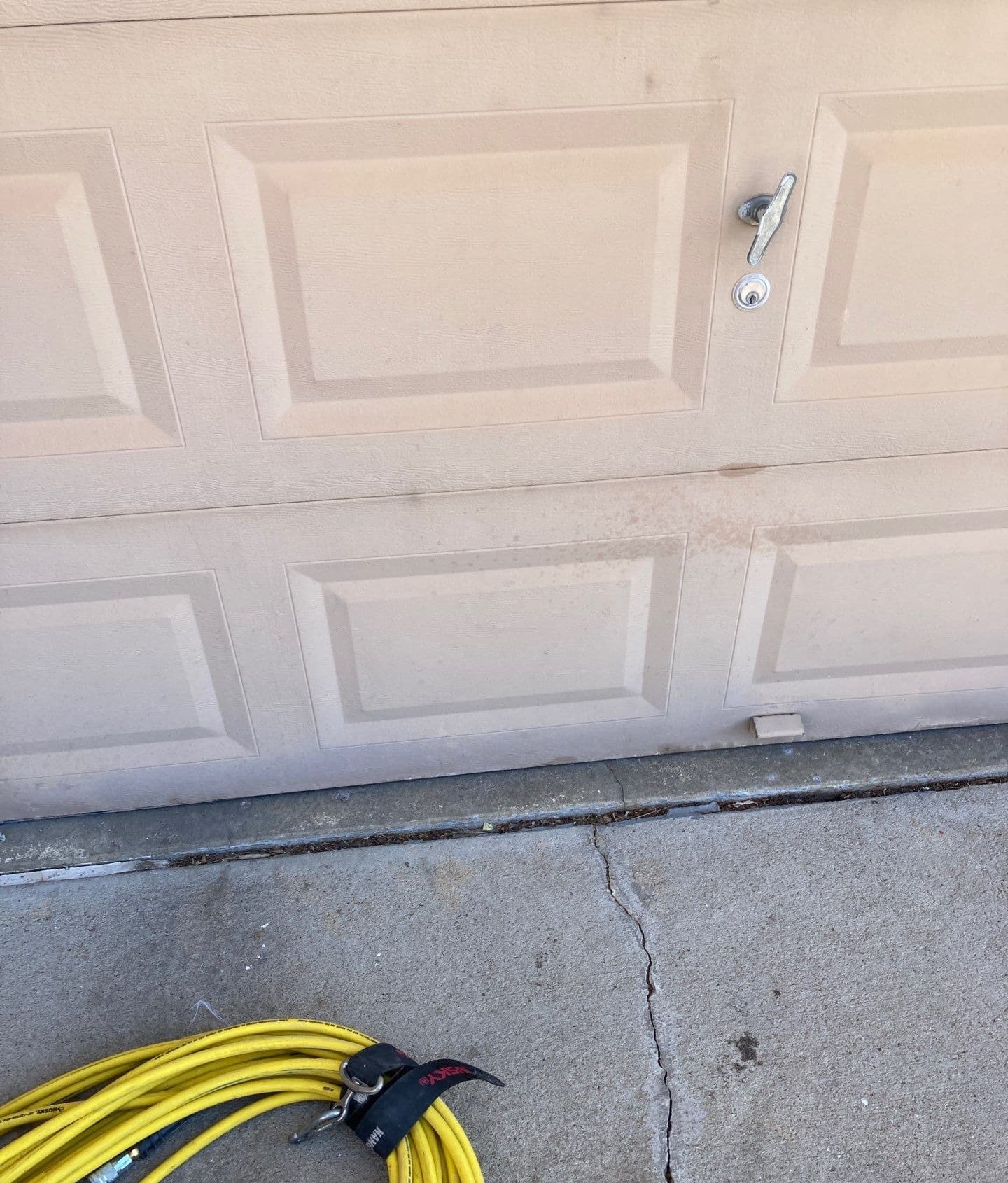

What causes cracked garage floor in Midwest homes.
- 01
Settlement of Backfill Soil
Garage slabs often sit over soil that was disturbed during construction and never fully compacted. As that loose fill settles, the slab loses support and cracks where it bridges the gap. The drop is usually worst near the foundation wall or the garage door.
- 02
Load Stress from Vehicles
Cars, trucks, and stored equipment concentrate heavy weight on the slab. If the concrete is thin or the soil under it is soft, that load bends the slab past its tension limit and opens cracks, often near the center or the door opening.
- 03
Freeze-Thaw Movement
Garage floors near the frost line take the brunt of 50 to 70 freeze-thaw cycles a year, with frost reaching 36 to 42 inches deep. Water in the soil freezes and lifts the slab, then thaws and lets it drop. The repeated motion fractures the concrete.
- 04
Curing Shrinkage and Missing Joints
Like any slab, a garage floor shrinks as it cures and relieves that tension by cracking, especially when control joints are spaced too far apart. These cracks are usually thin and stable rather than a sign of settlement.
Why concrete fails differently in Nebraska, Iowa, Kansas, and Missouri
Loess soils consolidate under slabs after the first deep water exposure. Expansive clay heaves and contracts seasonally. Salt damage from frequent winter freeze-thaw cycling accelerates surface failure. Generic concrete repair ignores the soil under the slab, which is why settled concrete returns within a season or two. Regional repair starts with the cause underneath, not the crack on top.
Loess soils and the crack patterns they produce
Most of eastern Nebraska and western Iowa sits on wind-deposited loess, a fine, silty soil 10 to 200+ feet deep. Loess holds its structure when dry but loses cohesion rapidly when saturated. After a wet spring, saturated loess expands against foundation walls. After a dry Nebraska summer, it contracts, pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently on the Lincoln, Omaha, Council Bluffs corridor.
The Marshall and Sharpsburg loess series, dominant across the eastern Nebraska service area, are particularly prone to this cyclical volume change. Homes built in the 1960s, 1980s on uncompacted loess backfill show the highest incidence of progressive settlement cracking in our inspection data.
Frost depth, freeze-thaw cycles, and horizontal cracking
Eastern Nebraska's 36, 42" frost penetration depth means the soil below grade freezes and thaws 60, 80 times per year. Each cycle applies lateral pressure to basement walls. A wall that holds through ten cycles can fail in the eleventh if drainage has worsened, backfill has settled, or the wall was already at capacity. Horizontal cracks near the soil grade line are almost always a freeze-thaw story in this region.
In eastern Kansas, expansive clay pockets near the surface introduce a different failure mode. Consistent volume change regardless of frost depth. Horizontal cracking in Kansas foundations typically traces to clay expansion; the same pattern in Nebraska more often indicates frost-driven hydrostatic pressure.
"Inside a basement, epoxy works because nothing moves. Outside on a driveway, the slab moves with every freeze-thaw cycle and moves again with every summer-to-winter temperature swing. Rigid bond in a moving environment fails on a predictable timeline. Flexible sealant in the same environment lasts for years. The chemistry is dictated by the exposure."
