Large Foundation Cracks: Movement or Pressure Behind the Wall
A wide foundation crack is not just a bigger hairline. Width and pattern reveal whether soil shifting or water pressure is driving the problem, and either one tends to get worse with each wet season.
Let's take the first step toward a healthy home.
A local specialist will inspect your foundation, walk you through the findings, and send a clear estimate, no cost, no pressure.
Large Cracks from Shifting or Water Pressure: diagnosed and explained.
Large cracks in a foundation are a different problem than the thin lines common in new concrete. Width signals real movement or pressure. Foundation concrete handles compression well, around 3,000 to 4,000 psi, but resists tension poorly, only about 300 to 400 psi. So when soil shifts or water pushes against the wall, the concrete tears long before it crushes, and the crack widens as the force continues. Across Nebraska, Iowa, Kansas, and Missouri, two drivers dominate. Soil shifting comes from expansive clay and loess that swell when wet and shrink when dry, settling the foundation unevenly. Water pressure, called hydrostatic pressure, builds when saturated soil after spring rain or snowmelt presses against the wall, often where drainage is poor. The threshold worth watching is a crack wider than about a quarter inch, a crack that is actively growing, a crack with faces offset out of plane, or any crack that leaks water. Horizontal cracks in particular suggest soil pressure pushing the wall inward. Catching a large crack early matters because both shifting and pressure compound over time, and what starts as one wide crack can progress to a bowing or failing wall that needs far more extensive repair.

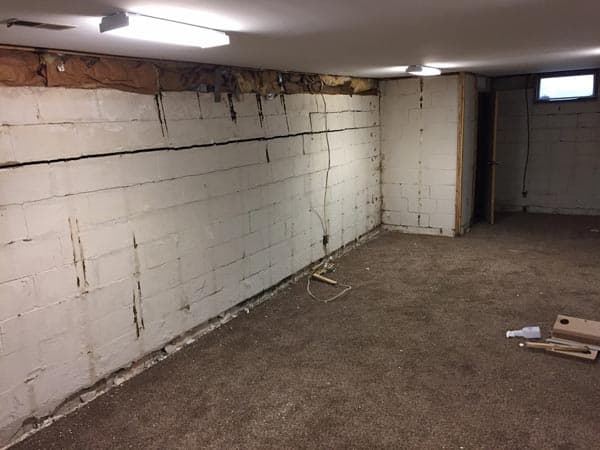

Watch for these warning signs alongside large foundation cracks.
- 01
A crack wider than about a quarter inch
Width at that level indicates significant movement or pressure rather than ordinary concrete shrinkage.
- 02
Water seeping through or around the crack
Moisture coming through the crack signals hydrostatic pressure outside and a path for further water and soil intrusion.
- 03
A horizontal crack across the wall
Horizontal cracking points to lateral soil pressure pushing the wall inward, a more serious pattern than vertical shrinkage cracks.
- 04
Faces of the crack offset out of plane
When one side of the crack sits forward of the other, the wall sections have shifted, confirming structural movement.
- 05
The crack visibly lengthening or widening over time
Active growth means the soil shifting or water pressure behind it is ongoing, not a settled, one-time event.
- 06
White mineral deposits around the crack
Efflorescence near the crack shows water has been moving through it, evidence of pressure and seepage at that point.

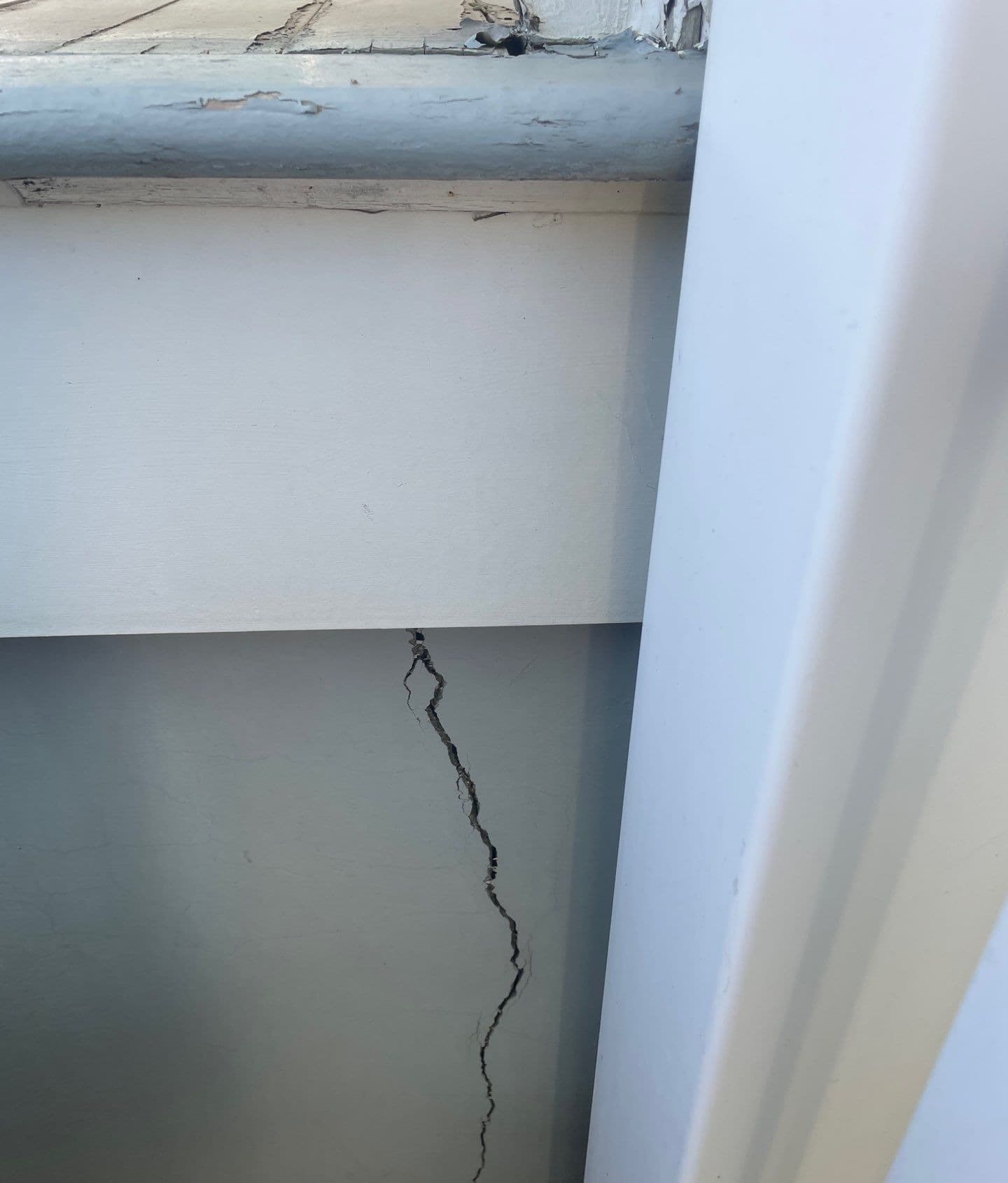

What causes large cracks from shifting or water pressure in Midwest homes.
- 01
Hydrostatic Pressure
Saturated soil after heavy rain or snowmelt presses directly against the foundation wall. Where drain tile is missing or failed, the wall takes the full water load each wet season, opening and widening cracks, often horizontal ones.
- 02
Uneven Soil Shifting
Expansive clay and loess soils swell when wet and shrink when dry. As one section of soil moves more than another, the foundation settles unevenly and the concrete tears, producing wide diagonal or stepped cracks.
- 03
Freeze-Thaw Loading
Eastern Nebraska and western Iowa see 50 to 70 freeze-thaw cycles a year with frost to 36 to 42 inches. Each freeze pushes saturated soil harder against the wall and footing, and the repeated cycling widens existing cracks.
- 04
Concrete's Low Tension Strength
Foundation materials resist crushing far better than being pulled apart, with tension capacity near 300 to 400 psi. Even moderate soil or water force is enough to open a large crack well before the concrete is at risk in compression.
How foundation repair specialists actually fix large cracks from shifting or water pressure.
Solving large cracks from shifting or water pressure means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Nebraska, Iowa, Kansas, and Missouri homes.
Engineered foundation repair solutions for this problem.
Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.
Carbon Fiber Reinforcement
Epp Foundation Repair has reinforced bowed walls across Nebraska, Iowa, Kansas, and Missouri since 1994. No interior steel, no excavation, no lost basement space.
Deep Foundation Systems
Epp Foundation Repair has stabilized settling structures across Nebraska, Iowa, Kansas, and Missouri since 1994 by carrying the load past weak surface soil to firm ground below. Stop the settlement, then attempt to recover what you can.
Epoxy Crack Injection
Epp Foundation Repair has injected foundation cracks across Nebraska, Iowa, Kansas, and Missouri since 1994, and uses sequential polyurethane plus epoxy when one alone won't hold.
Expansion Joints
Epp Foundation Repair has placed and resealed expansion joints across Nebraska, Iowa, Kansas, and Missouri since 1994. A good joint gives concrete room to move so it cracks where you want it to, not where you don't.
Foundation Underpinning
Epp Foundation Repair has driven engineered piers through Nebraska loess and Kansas clay since 1994. Helical, push, and slab piers, matched to the soil and the structure.
Helical Deck Piers
Epp Foundation Repair has set helical deck piers across Nebraska, Iowa, Kansas, and Missouri since 1994. Steel screwed into firm ground holds a deck level through every freeze-thaw season.
Why foundation movement in Nebraska and Iowa needs a regional diagnosis
Loess soils across eastern Nebraska and western Iowa lose strength when wet. Expansive clay across northeast Kansas and northwest Missouri swells and shrinks with the seasons. Foundation movement here behaves differently than in states with stable bearing soil, which is why our diagnosis starts with the soil under the home, not just the crack on the wall.
Loess soils and the crack patterns they produce
Most of eastern Nebraska and western Iowa sits on wind-deposited loess, a fine, silty soil 10 to 200+ feet deep. Loess holds its structure when dry but loses cohesion rapidly when saturated. After a wet spring, saturated loess expands against foundation walls. After a dry Nebraska summer, it contracts, pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently on the Lincoln, Omaha, Council Bluffs corridor.
The Marshall and Sharpsburg loess series, dominant across the eastern Nebraska service area, are particularly prone to this cyclical volume change. Homes built in the 1960s, 1980s on uncompacted loess backfill show the highest incidence of progressive settlement cracking in our inspection data.
Frost depth, freeze-thaw cycles, and horizontal cracking
Eastern Nebraska's 36, 42" frost penetration depth means the soil below grade freezes and thaws 60, 80 times per year. Each cycle applies lateral pressure to basement walls. A wall that holds through ten cycles can fail in the eleventh if drainage has worsened, backfill has settled, or the wall was already at capacity. Horizontal cracks near the soil grade line are almost always a freeze-thaw story in this region.
In eastern Kansas, expansive clay pockets near the surface introduce a different failure mode. Consistent volume change regardless of frost depth. Horizontal cracking in Kansas foundations typically traces to clay expansion; the same pattern in Nebraska more often indicates frost-driven hydrostatic pressure.
"If a wall's clean concrete and bowed under two inches, carbon fiber wins on cost and floor space. If the wall's painted, cracked, or already past two inches of deflection, you put steel against it. The wall tells you which one. Not the salesman."
