Channel Water Under the Barrier and Out to the Sump

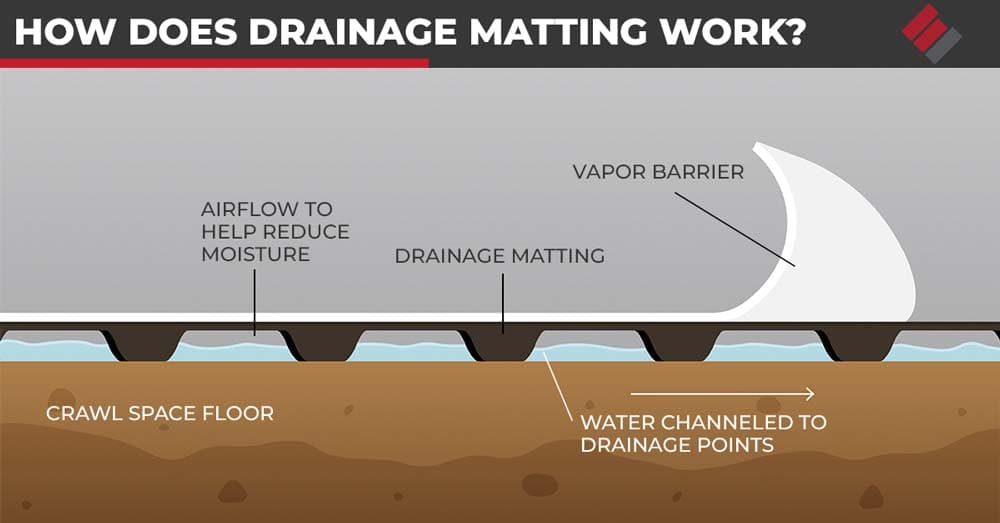

Drainage matting is a tough plastic sheet molded with raised dimples that goes down on the crawl space floor before the vapor barrier. The dimples hold the barrier up off the soil and create a continuous air gap underneath. That gap channels any water that enters the crawl space toward a perimeter drain and a sump pump, instead of letting it pool under a flat barrier. Epp Foundation Repair installs it in crawl spaces that take on liquid water, not just humidity, as part of a complete encapsulation and drainage system.

A flat vapor barrier blocks moisture vapor well, but if liquid water gets into the crawl space it traps that water against the floor, where it pools and can lift the plastic. Drainage matting gives the water a designed path. It flows through the channels under the matting to a perimeter drain and out through the sump, so it never collects under the barrier. The matting also protects the vapor barrier from sharp soil and debris, which makes the whole system last longer. It works as part of a drainage system, not on its own.

Yes. Drainage matting is the bottom layer and the vapor barrier seals over the top of it, so the two are installed together as one system. The matting handles liquid water by channeling it to the sump, and the sealed barrier on top blocks soil moisture vapor and creates the dry, encapsulated space. A dehumidifier then conditions the air. Epp Foundation Repair only adds the matting layer when there is a real liquid-water problem; a dry crawl space with only a humidity issue does not need it.

Drainage matting prevents standing water on top of the barrier by giving the water a path underneath to the sump, but it does not reduce how much water arrives in the first place. Think of it as a conveyor, not a dam. It controls where the water goes once it enters. That is why it only works paired with a perimeter drain and a working sump pump that actually carries the water out and away from the house. In the Missouri River basin where the water table runs high, that managed path is what keeps the crawl space floor dry.

Drainage matting is priced as part of a crawl space drainage and encapsulation system rather than on its own, since it works with a perimeter drain and sump. Adding the matting layer typically increases the project cost by a few dollars per square foot of crawl space floor. A Customized Repair Estimate after an on-site inspection reflects your scope.

Drainage matting is made from durable molded plastic rated for long-term contact with soil, and installed under a sealed barrier it is designed to last for decades. Because it sits below the vapor barrier and is protected from foot traffic and sunlight, it sees little wear. The components that need periodic attention are the sump pump and the perimeter drain, which Epp Foundation Repair recommends checking before each wet season. The matting itself carries the manufacturer's warranty. Ask about the warranty that applies to the Epp installation on your project.
