Foundations are the bedrock of any structure, ensuring its stability, durability, and overall structural integrity. Among the various types of foundations available, monolithic and floating slab foundations are common choices that homeowners and builders often consider. But what exactly sets these two foundations apart?
This blog post outlines each foundation type’s characteristics, advantages, potential drawbacks, and foundation repair options. So, keep reading to learn more.
What Is The Difference Between A Monolithic Slab Foundation And A Floating Slab Foundation?

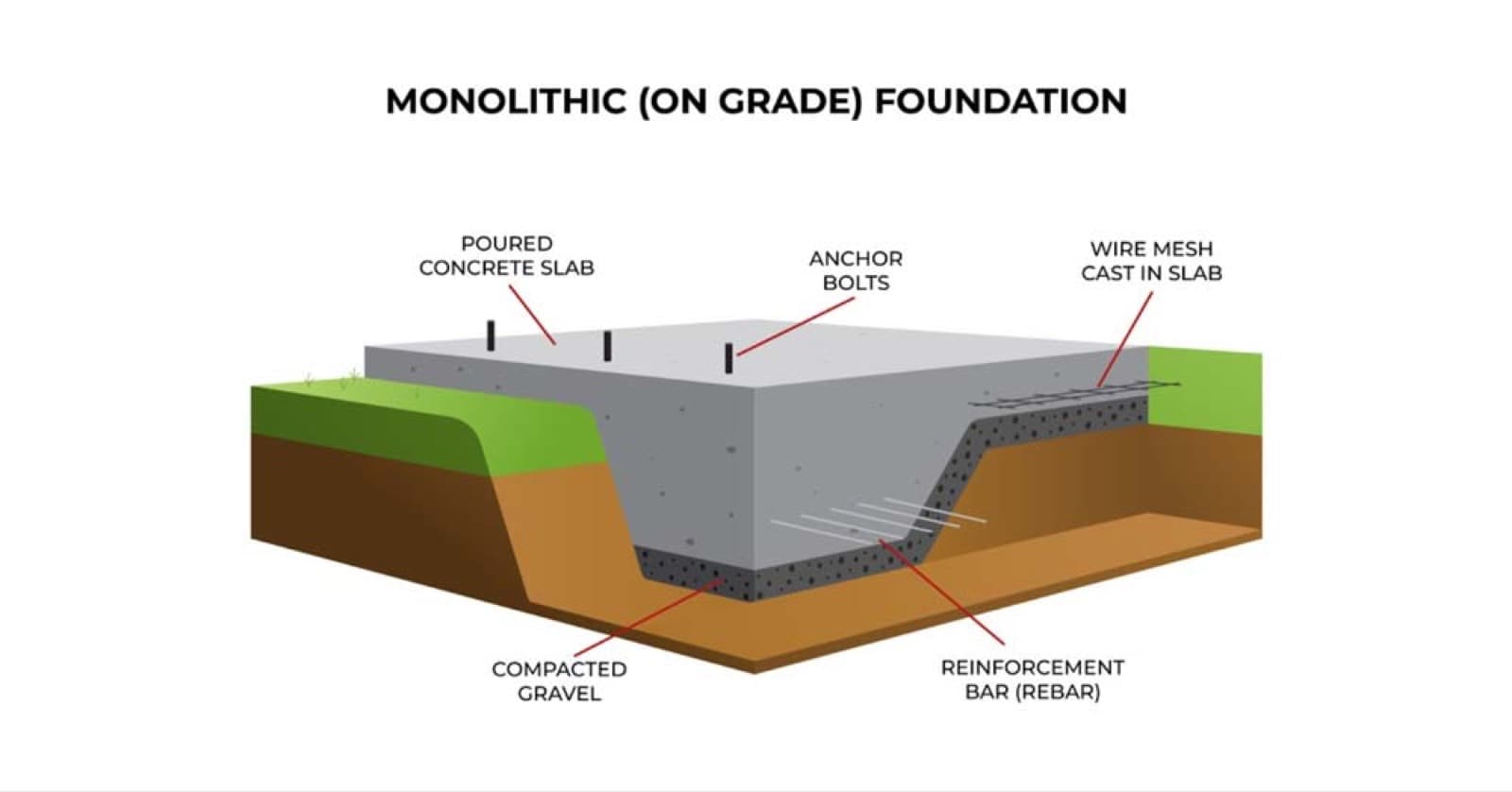

What Is A Monolithic Slab Foundation?
A monolithic slab foundation, also known as a monolithic pour, is a type of foundation poured all at once. This means the foundation and the footing (the base that supports the slab) are created in a single pour of concrete.
Building a monolithic slab foundation starts with getting the site ready. This means clearing away plants, debris, and the top layer of soil, then leveling the ground to make a stable base for the foundation.
Once the site is ready, workers set up boundary forms to shape the concrete. Trenches are dug within these forms for the footings, which are deeper and wider to give extra support. Next, steel rebar is added to strengthen the foundation. The rebar is placed in the trenches and across the main slab area.
Then, the concrete is poured all at once, filling the trenches and the slab area (around 6-8 inches thick). This creates a strong, unified structure. Workers use tools to level and smooth the surface of the concrete.
The final step is curing the concrete. It is kept moist for about seven days or more to prevent cracking and ensure the foundation is strong and durable.
What Is A Floating Slab Foundation?
On the other hand, a floating slab foundation is a two-step process in which the slab is poured separately from the footing or does not have a footing at all. This means the slab essentially “floats” on top of the soil.
Building a floating slab foundation starts with site preparation. The area is cleared of plants, debris, and topsoil, and the ground is leveled. The soil is then compacted to create a solid base for the slab.
Next, formwork is set up to shape the slab. A vapor barrier and insulation are often placed to prevent moisture issues. Steel rebar or wire mesh is laid across the slab area for extra strength. Concrete is poured into the slab form. Workers then level and smooth the surface.
Finally, the slab is cured by keeping it moist for about seven days or more. This helps the slab set properly and reduces the risk of cracking from soil movement or freeze-thaw cycles.
Pros And Cons Of Monolithic Slab Foundations
Monolithic Slab Foundation Pros
- Cost-Effective: Monolithic slab foundations are generally less expensive because they require fewer materials and less manpower than other foundations. Pouring the concrete in one go reduces labor and time costs.
- Faster Construction: Since the concrete is poured in a single continuous operation, the construction process is quicker, allowing for faster project completion. However, ground preparation may take a while.
- More Straightforward Process: The monolithic slab’s design is straightforward, making it easier to plan and execute, which can reduce the chances of errors during construction.
- Structural Integrity: The continuous pour creates a unified structure that can enhance structural integrity, reducing the likelihood of cracks and separations.
Monolithic Slab Foundation Cons
- Ground Preparation: Extensive site preparation ensures the ground is perfectly level, as any irregularities can affect the slab.
- Limited Adaptability: Monolithic slabs may not be suitable for areas with poor soil conditions, as they are more susceptible to cracking due to soil movement.
- Less Insulation: This type of foundation generally offers less insulation from the ground, which could lead to higher heating and cooling expenses in some climates.
- Difficult Repairs: If problems arise, such as plumbing or electrical issues under the slab, repairs can be challenging and costly because the entire slab may need to be broken apart.
Pros And Cons Of Floating Slab Foundations
Floating Slab Foundation Pros
- Cost-Effective: Floating slab foundations are generally less expensive than traditional foundations because they require fewer materials and less excavation.
- Adaptable to Soil Conditions: Ideal for sites with poor or unstable soil conditions where traditional foundations might not be feasible.
- Minimizes Frost Heave: It is less likely to be affected by frost heave than deep foundations, as the slab is less anchored into the ground.
- Simple Construction: Easier and faster to construct, which can reduce labor costs and construction time.
- Reduces Settlement Risk: As the slab floats above the soil and moves with it, this can reduce the risk of settlement.
Floating Slab Foundation Cons
- Limited Load-Bearing Capacity: Floating foundations may not be suitable for very heavy structures or areas with high loads, as they have a lower load-bearing capacity than other foundation types.
- Potential for Cracking: If not properly designed or constructed, floating slabs can be prone to cracking due to soil movement or freeze-thaw cycles.
- Not Suitable for All Soil Types: Floating slab foundations may not be appropriate for sites with highly expansive or compressible soils, which could affect the slab’s stability.
- Thermal Insulation Requirements: Additional insulation is often required to avoid heat loss or gain through the slab, which can add to the overall cost.
Factors To Consider When Choosing Between Monolithic And Floating Slab Foundations
When deciding between monolithic and floating foundations, consider these factors:
Soil Conditions
- Monolithic Slab Foundation: This foundation is ideal for stable soil conditions. It provides a solid, continuous base that can handle various soil types but requires thorough site preparation. It is also stable and permanent and less likely to shift over time.
- Floating Slab Foundation: These are better suited for poor or unstable soil conditions. Designed to move with the soil, reducing the risk of cracking due to soil movement, but it may require ongoing monitoring and maintenance.
Cost
- Monolithic Slab Foundation: They are generally more expensive due to the need for extensive formwork and concrete pouring in a single process.
- Floating Slab Foundation: They are typically more cost-effective because they require lesser materials and less complicated construction.
Load-Bearing Requirements
- Monolithic Slab Foundation: Offers greater load-bearing capacity and is suitable for heavy structures or areas with high loads.
- Floating Slab Foundation: Limited load-bearing capacity, making it less ideal for heavy structures or high load conditions.
Design And Aesthetics
- Monolithic Slab Foundation: This foundation, with its integrated slab and footing, allows for a wide range of architectural designs and finishes.
- Floating Slab Foundation: This may limit design options due to its more straightforward construction and potential for visible changes in elevation.
Monolithic Vs. Floating Slab Repair
Is your home experiencing foundation problems? If you have a floating or monolithic slab foundation type, here is an overview of the possible repair processes:
- Monolithic Slab Foundation Repair: Due to its continuous design, repairing a monolithic slab can be challenging. Addressing cracks or settlement issues typically involves techniques such as epoxy injections for cracks, slab jacking, or foundation underpinning to lift settled areas. The repair process is often complex, requiring professional expertise to avoid affecting the entire structure. This complexity generally results in higher repair costs, as extensive work may be needed to fix issues across the slab.
- Floating Slab Foundation Repair: In contrast, repairing a floating slab is generally more straightforward and less costly. Floating slabs are designed to move with the soil, so repairs usually focus on surface cracks, leveling the concrete, and ensuring that moisture barriers are intact. Techniques like crack filling and reinforcing the slab with additional mesh or rebar are standard. Because the floating slab design allows for more accessible and adaptable repairs, it typically involves less extensive work than monolithic slabs.
