When it comes to your home’s structural integrity, every component plays a crucial role. One often overlooked yet vitally important element is the sill plate. Whether you’re a seasoned homeowner or a first-time buyer, understanding what a sill plate is, its significance, and how to detect and prevent damage can help you maintain and protect your property.
What is a Sill Plate?

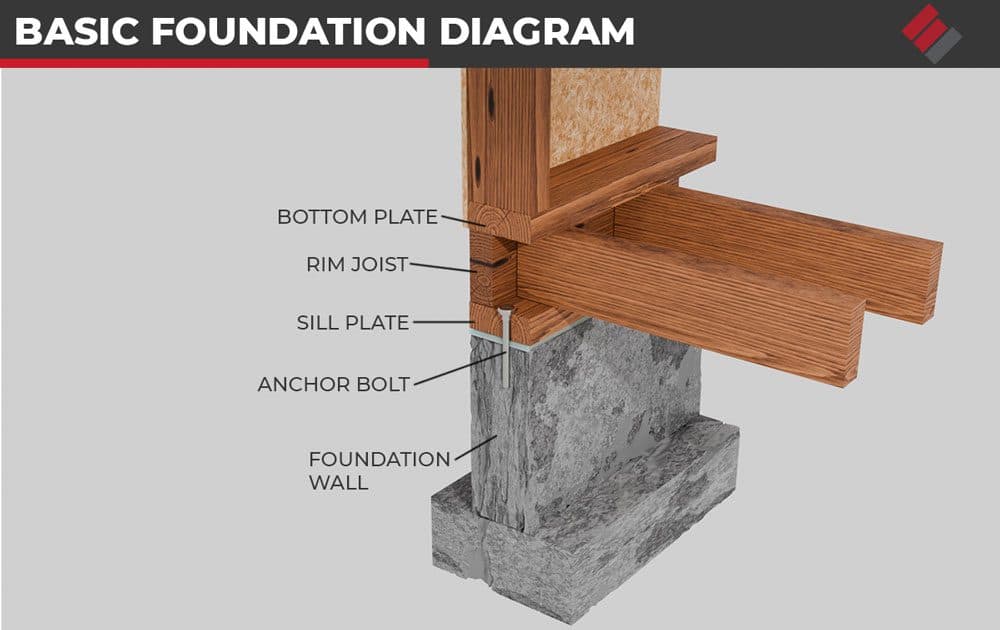

A sill plate, also known as a mudsill or sole plate, is a horizontal piece of lumber that sits directly on top of a building’s foundation. It is the primary interface between the house’s wooden structure and the concrete foundation. The sill plate is an anchor for the wall framing and support that evenly distributes the load from the walls and roof across the foundation.
Different Types
There are several types of sill plates, each suited for different applications and conditions:
- Pressure-Treated Wood: Commonly used for its resistance to moisture and pests.
- Engineered Wood: Offers greater strength and stability but can be more expensive.
- Metal Sill Plates: Less common but used in specific applications requiring extra durability.
What is the Difference Between a Sill Plate and a Bottom Plate?
In older homes, the sill plate was directly bolted to the foundation. Today, a sill sealer or gasket is typically placed between the sill plate and the foundation to ensure a secure and stable connection. This material acts as a moisture barrier and helps ensure a snug fit, reducing the risk of air leaks and water infiltration. A metal barrier may be placed beneath the sill plate in areas plagued by termites, preventing insects from accessing the wood above the foundation wall. This thoughtful integration of materials and techniques plays a pivotal role in preserving the structural integrity and longevity of the home.
Sill Plate Installation Process

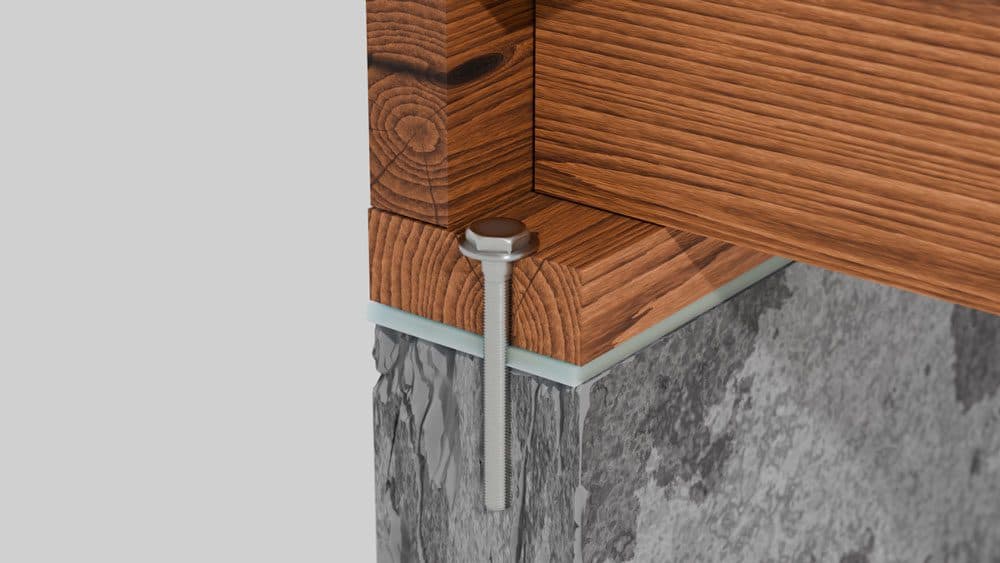

To ensure a secure and durable connection between a home’s structure and its foundation, the construction process involves careful placement of heavy-duty steel anchor bolts, known as J-bolts, into the wet concrete at the top of the foundation walls. These J-bolts are designed with a curved bend at the bottom, securing them firmly into the concrete as it hardens. The top portion of these bolts protrudes above the surface, featuring threads to accommodate nuts. After the foundation settles, framing carpenters align the wood sill plates over these bolts, meticulously drilling through the sill plate at the locations of the J-bolts to ensure the wood sits perfectly flat against the concrete. The sill sealer or gasket is placed on the concrete, and the plates are fastened securely to the foundation using large washers and nuts on the protruding ends of the J-bolts.
Do All Homes Have Sill Plates?
Not all homes have sill plates. Sill plates are commonly used in homes with basements or crawl spaces with a distinct foundation wall. Homes built on a slab-on-grade foundation may not have a traditional sill plate, as the walls are constructed directly on the concrete slab. Instead, the bottom plate takes the place of the sill plate. Some older homes were also built without sill plates.
Signs of Sill Plate Damage
How Do They Become Damaged?
Sill plates can become damaged due to several factors:
- Moisture: Prolonged exposure to moisture can lead to rot and decay.
- Pests: Termites and other pests can weaken the sill plate by chewing through the wood.
- Structural Shifts: Settling or shifting of the foundation can cause cracks and breaks in the sill plate.

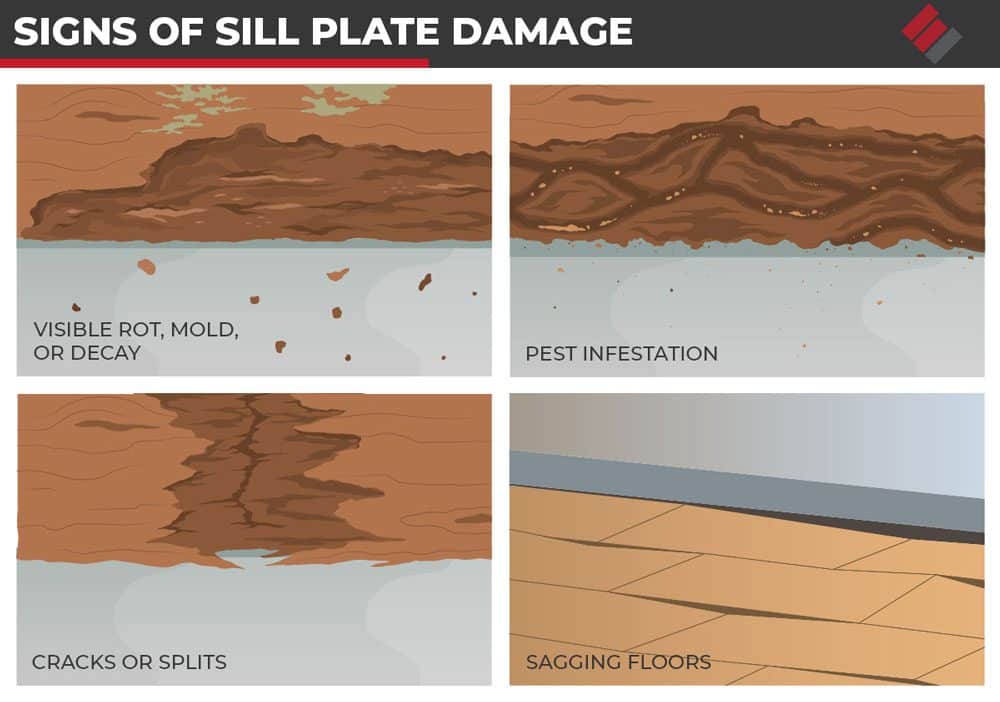

Signs of Damage
- Visible Rot, Mold, or Decay: Darkened, soft, or crumbling wood.
- Pest Infestation: Evidence of termite activity or other pests.
- Cracks or Splits: Visible fractures in the wood.
- Sagging Floors: Uneven or sagging floors above the affected area.
Associated Problems with Damaged Sill Plates
- Compromised Structural Integrity: The entire framework of the house depends on a solid sill plate.
- Moisture Infiltration: Damaged sill plates can allow water to enter the home, leading to further decay and mold growth.
- Pest Entry: Gaps created by damaged sill plates can become entry points for pests.
Can a Sill Plate Be Replaced?
A damaged sill plate can be replaced, although it is a complex and labor-intensive process. A professional contractor should be consulted to assess the extent of damage and determine the best course of action. The replacement process typically involves temporary support for the walls while the damaged sill plate is removed and replaced with a new one.
Replacement Process
- Assessment: Inspect the extent of the damage.
- Preparation: Support the structure temporarily using jacks or braces.
- Removal: Carefully remove the damaged section of the sill plate.
- Replacement: Install a new sill plate, ensuring it is adequately sealed and anchored.
- Final Inspection: Ensure the new sill plate is level and securely fastened.
How to Prevent Sill Plate Damage
Preventative measures can significantly reduce the risk of damage caused by moisture, pests, and structural shifts, ensuring the longevity of your sill plate. Review the following practical steps and considerations for preventing damage to the sill plate:
- Regular Inspections: It is crucial to conduct regular inspections of the sill plate and the rest of your foundation. Look for any evidence of wear and tear, such as rot or insect damage. These inspections help identify issues early on, preventing significant damage and expensive repairs in the future.
- Moisture Control: Managing moisture levels around the foundation is essential for maintaining the integrity of a building’s structure. Ensure the area surrounding your foundation has proper drainage to prevent water accumulation, which can lead to wood rot and weaken the foundation. Utilizing moisture barriers can also be effective. If your property includes a crawl space, encapsulating it can further protect against moisture by sealing out damp air and preventing mold growth.
- Pest Prevention: Implementing effective pest control measures is critical to safeguarding the structure from termites and other destructive pests. Regular treatments and inspections can prevent infestations from compromising the building’s strength and safety. Consider natural deterrents or professional pest control services to maintain a pest-free environment.
Protecting your home’s structural integrity is essential. If you suspect damage to your sill plate or foundation, don’t wait for the problem to worsen. Contact us today to schedule a professional inspection and receive a detailed quote for repair. We service customers throughout Nebraska, Iowa, Missouri, and Kansas. Let us help you safeguard your home for years to come.
