10 Powerful Repair Options for Wing Walls to Enhance Structural Integrity

wing wall
wing wall

Wing walls, the unsung heroes of bridges and culverts, play a crucial role in supporting these structures and directing the flow of water or soil. They are the silent guardians, helping to maintain the integrity of the surrounding infrastructure. Over time, these walls can suffer damage due to environmental factors, wear and tear, or accidents leading to deterioration. Fortunately, there is a range of powerful repair options that have proven to be effective in addressing these issues. We will delve into these different repair options for wing walls, from simple crack repairs to advanced structural reinforcements.

Discover comprehensive repair options for wing walls to ensure durability and safety. Learn effective methods to restore and maintain your wing walls today.

Understanding Wing Walls

Wing walls, the unsung heroes of bridges, are not just sturdy sidewalls. They are the first line of defense against soil erosion, keeping the soil in place and providing extra stability to the bridge. These walls are crucial because they prevent soil erosion and support the bridge’s overall structure.

Here’s a breakdown to help you understand wing walls better:

  • Purpose: The wing walls hold the soil around the bridge, ensuring it doesn’t wash away or collapse. This stability is vital for the bridge’s safety and longevity.
  • Materials: They can be made from concrete, masonry (bricks or blocks), and stone. The choice of material depends on the design and location of the bridge.
  • Construction: Wing walls are usually constructed at an angle to the bridge, extending from the ends to blend with the surrounding landscape. They are built to withstand environmental factors like water flow, soil pressure, and weather conditions.

Understanding how wing walls are built and their role is the first step in identifying and addressing repair needs.

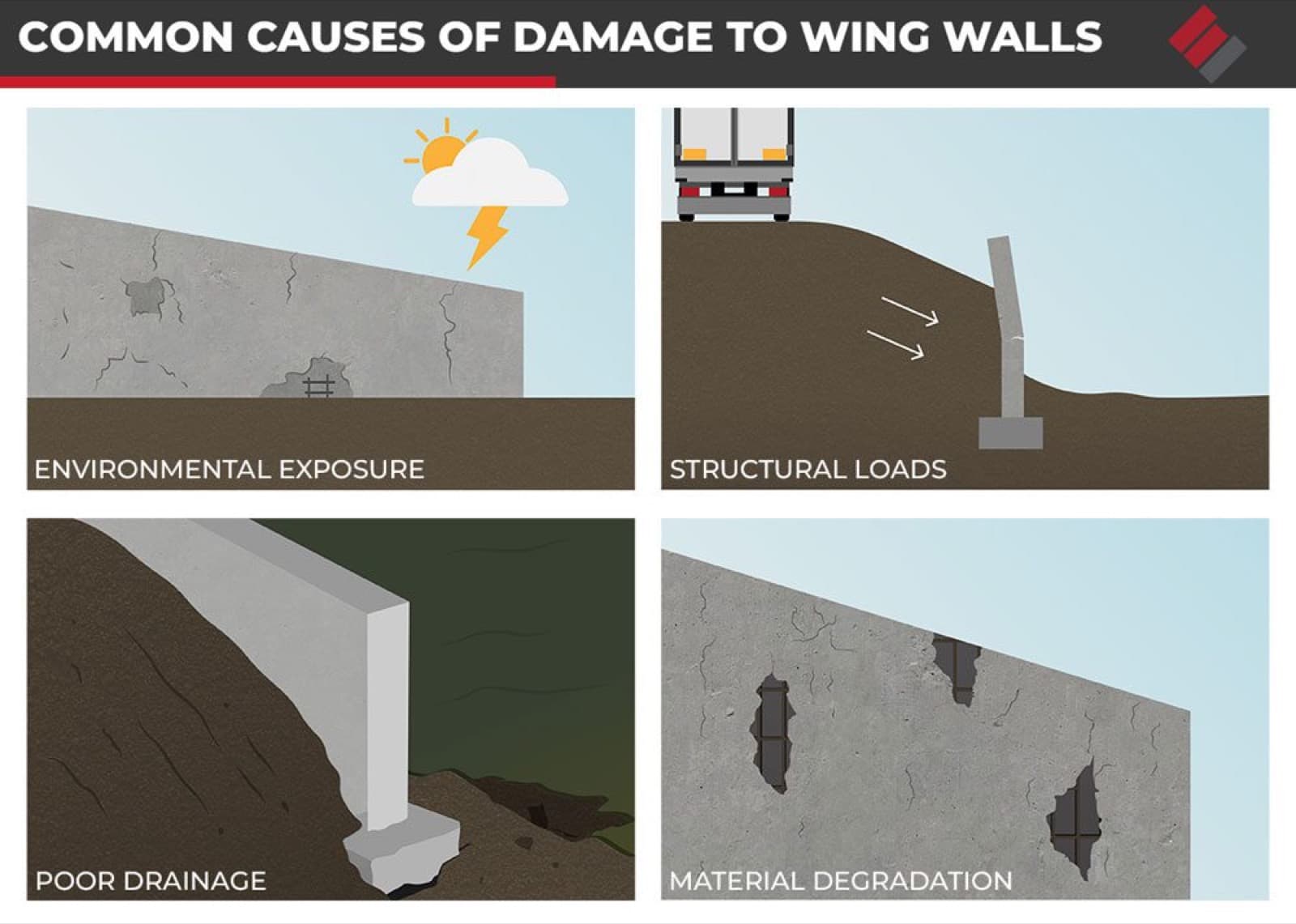

Common Causes of Damage to Wing Walls

Wing walls can deteriorate over time due to several factors:

  • Environmental Exposure: Wing walls are constantly exposed to weather conditions. Rain can cause water damage, freeze-thaw cycles (where water freezes and thaws repeatedly) can create cracks, and temperature changes can make materials expand and contract. These weather conditions weaken the materials over time, making the walls more susceptible to damage.
  • Structural Loads: Wing walls often bear heavy loads from traffic and other weight on the structure they support. This constant pressure can cause stress on the walls. The stress from heavy loads can lead to cracks and structural weaknesses in the walls.
  • Poor Drainage: If the drainage system around the wing wall is inadequate, water can accumulate and seep into the structure. Water buildup can cause erosion, washing away the soil that supports the wall and weakening its foundation. It can also lead to water damage inside the wall itself.
  • Material Degradation: Materials like concrete and masonry used in wing walls can degrade over time due to natural wear and tear. As these materials break down, the wall’s structural integrity decreases, making it less capable of supporting loads and resisting environmental stresses.

Common Causes of Damage to Wing Walls

Understanding these common causes of damage helps you take preventive measures and underscores the importance of choosing the correct repair methods. The consequences of neglecting wing wall damage can be severe, compromising the safety and longevity of the entire bridge structure.

Signs of Wing Wall Deterioration

It’s essential to catch damage early to prevent more significant problems. Regular inspections can help identify some common signs that your wing wall might need repairs:

  • Cracks and Fractures: If you see cracks on the wall’s surface, it could mean deeper structural issues that need fixing.
  • Water Stains and Efflorescence: These signs show water getting into the wall. Water stains are discolored patches, and efflorescence resembles white, powdery deposits. Both suggest water damage, which can worsen over time.
  • Displacement or Bulging: If the wall appears to be shifting, leaning, or bulging, it’s a sign of a severe structural problem that needs immediate attention.
  • Spalling and Erosion: If chunks of the wall are breaking off or if you notice significant wear and erosion, it means the material is degrading and losing its strength.

Assessment and Inspection Methods

Before fixing a wing wall, we must figure out precisely what’s wrong with it. Here are some ways we inspect and assess the damage:

  • Visual Inspection: This is the simplest method. Walk around the structure and look closely at the wing wall for any visible damage, such as cracks, chips, or signs of wear. It’s a quick way to spot problems that need immediate attention.
  • Non-destructive Testing (NDT): These advanced techniques allow you to look inside the wall without harming it. It reveals problems you can’t see with the naked eye, ensuring you don’t miss anything critical.
    • Ultrasonic Testing uses sound waves to detect internal flaws, similar to how a doctor uses ultrasound to look inside your body.
    • Ground-penetrating radar (GPR) uses radar pulses to create subsurface images. It helps find hidden issues like voids or internal cracks.
  • Core Sampling involves drilling out small samples (cores) of the wall material to test their strength and composition in a lab. This gives you a detailed understanding of the wall’s condition, including its strength and whether it’s made of suitable materials.

We can get a clear and accurate picture of the damage using these proven inspection methods. This thorough assessment ensures you address all the issues and restore the wall’s integrity. With this comprehensive understanding, you can confidently decide on the best way to repair the wing wall, knowing that reliable data backs your repair decisions.

Choosing the Right Repair Method

When fixing wing walls, selecting the best repair method involves considering several key factors. First, assess the type and extent of the damage. Small cracks might need a simple fix, but significant or structural issues require more intensive repairs.

Ensuring the repair materials are compatible with the existing construction is vital. For example, if your wing wall is made of concrete, you’ll need compatible materials for the repair.

Simple repairs might be doable. However, more complicated issues, like structural damage, are best handled by professionals. Some repair methods might be cheaper but less effective, while others could be more expensive but provide a longer-lasting fix. Repair costs vary widely based on material costs, labor costs, and potential long-term savings. Different materials have different prices, such as bare concrete being cheaper than high-strength epoxy or carbon fiber.

Hiring professionals can be expensive due to labor costs, but they bring the expertise needed for complex repairs. Regular inspections should be conducted annually, with more frequent checks in areas prone to severe weather or heavy loads. Investing in quality repairs now can save money in the long run by preventing further damage and avoiding repeated fixes. Safety should always come first. If the repair involves working at heights, heavy lifting, or other risky activities, it’s best to call in professionals.

Choosing the suitable repair method and whether to DIY or hire a pro ensures the repair is effective, safe, and within your budget.

Here are ten powerful repair options that can significantly enhance your wing walls’ structural integrity and longevity, ensuring your infrastructure remains safe and operational for many years:

1. Concrete Patching: Concrete patches are effective for repairing localized damage. This method involves cleaning the damaged area and applying a specialized concrete mix to fill cracks and surface damage. It is quick and cost-effective, suitable for minor damages, and restores the wall’s appearance and functionality.

2. Steel Reinforcement: Installing steel bars, braces, or mesh can support the weakened wall. This significantly enhances strength and durability, making it ideal for high-stress areas.

3. Shotcrete Application: A high-velocity concrete spray covers and reinforces damaged sections. It provides a robust and durable repair, ideal for quickly and effectively covering large areas. A professional would use specialized equipment to spray concrete onto the surface, creating a new, durable layer.

4. Epoxy Injection involves injecting epoxy resin into cracks to bond and seal them from the inside out. This creates a robust, waterproof seal that prevents further deterioration and is suitable for fine cracks and internal damage. For larger cracks, epoxy injection can bond the cracked sections together and restore structural integrity.

5. Carbon Fiber Wrapping: Carbon fiber wrapping is a non-intrusive advanced repair method. It involves wrapping the wing wall with carbon fiber sheets to add strength without adding significant weight. Solid and lightweight, it provides long-lasting reinforcement and is minimally invasive. Applying Fiber-Reinforced Polymer (FRP) Wrapping can increase the strength and stability of the wall without significantly changing its appearance. It’s a highly effective solution for reinforcing weakened structures.

6. Grouting: Filling voids and cracks with grout to stabilize and strengthen the structure from within. Effective for addressing internal damage and improving overall stability, especially in porous or hollow areas.

7. Waterproofing Treatments: Water damage can be particularly challenging. Ensure proper drainage systems are in place. Applying waterproof coatings or membranes protects the wing wall from water infiltration. It prevents water damage, reduces freeze-thaw cycles, and extends the lifespan of the wing wall.

8. Cathodic Protection: Installing an electrical system to prevent corrosion of steel reinforcements within the concrete. Protects against rust and corrosion, extending the life of reinforced concrete structures.

9. Soil Stabilization: Using techniques like compaction grouting or soil nails to stabilize the soil around the wing walls. It prevents soil movement that can cause further damage to the structure, enhancing overall stability.

10. Replacement of Damaged Sections: Removing and replacing severely damaged parts of the wing wall with new material. Ensures the most compromised areas are restored to original strength, providing a complete, long-lasting solution.

Secure Your Wing Walls Today

Don’t wait to repair your wing walls! Our experienced team at Epp Foundation Repair is ready to provide a comprehensive inspection and permanent stabilization solution. We proudly serve Nebraska, Kansas, Iowa, and Missouri. Let us help you protect your infrastructure and extend the life of your wing walls. Reach out for a consultation and take the first step towards a more robust, safer structure!
